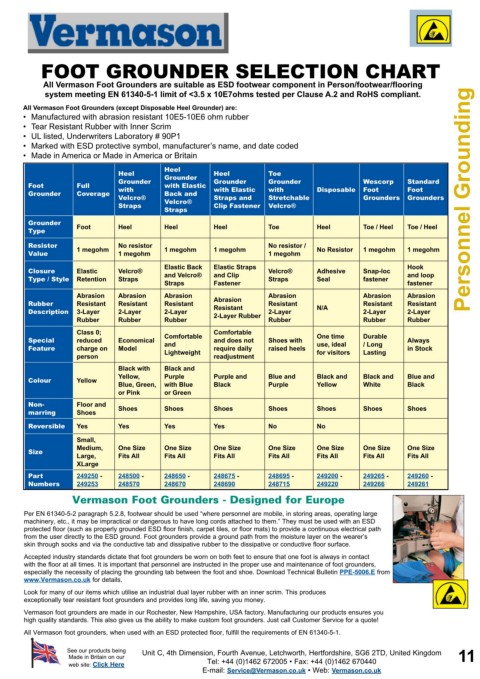

FOOT GROUNDER SELECTION CHART

All Vermason Foot Grounders are suitable as ESD footwear component in Person/footwear/flooring
system meeting EN 61340-5-1 limit of <3.5 x 10E7ohms tested per Clause A.2 and RoHS compliant.
All Vermason Foot Grounders (except Disposable Heel Grounder) are:
• Manufactured with abrasion resistant 10E5-10E6 ohm rubber
• Tear Resistant Rubber with Inner Scrim
• UL listed, Underwriters Laboratory # 90P1
• Marked with ESD protective symbol, manufacturer’s name, and date coded
• Made in America or Made in America or Britain

Heel
Heel Grounder Heel Toe
Grounder Grounder Grounder Wescorp Standard
Foot Full with with Elastic with Elastic with Disposable Foot Foot
Grounder Coverage Back and
Velcro® Velcro® Straps and Stretchable Grounders Grounders Personnel Grounding
Straps Clip Fastener Velcro®
Straps
Grounder
Type Foot Heel Heel Heel Toe Heel Toe / Heel Toe / Heel
Resistor No resistor No resistor /
Value 1 megohm 1 megohm 1 megohm 1 megohm 1 megohm No Resistor 1 megohm 1 megohm

Closure Elastic Velcro® Elastic Back Elastic Straps Velcro® Adhesive Snap-loc Hook
Type / Style Retention Straps and Velcro® and Clip Straps Seal fastener and loop
Straps Fastener fastener
Abrasion Abrasion Abrasion Abrasion Abrasion Abrasion
Rubber Resistant Resistant Resistant Abrasion Resistant N/A Resistant Resistant
Resistant
Description 3-Layer 2-Layer 2-Layer 2-Layer Rubber 2-Layer 2-Layer 2-Layer
Rubber Rubber Rubber Rubber Rubber Rubber
Class 0; Comfortable
Special reduced Economical Comfortable and does not Shoes with One time Durable Always
Feature charge on Model and require daily raised heels use, ideal / Long in Stock
person Lightweight readjustment for visitors Lasting
Black with Black and
Yellow, Purple Purple and Blue and Black and Black and Blue and
Colour Yellow
Blue, Green, with Blue Black Purple Yellow White Black
or Pink or Green
Non- Floor and Shoes Shoes Shoes Shoes Shoes Shoes Shoes
marring Shoes
Reversible Yes Yes Yes Yes No No

Small,
Size Medium, One Size One Size One Size One Size One Size One Size One Size
Large, Fits All Fits All Fits All Fits All Fits All Fits All Fits All
XLarge
Part 249250 - 248500 - 248650 - 248675 - 248695 - 249200 - 249265 - 249260 -
Numbers 249253 248570 248670 248690 248715 249220 249266 249261
Vermason Foot Grounders - Designed for Europe

Per EN 61340-5-2 paragraph 5.2.8, footwear should be used “where personnel are mobile, in storing areas, operating large
machinery, etc., it may be impractical or dangerous to have long cords attached to them.” They must be used with an ESD
protected floor (such as properly grounded ESD floor finish, carpet tiles, or floor mats) to provide a continuous electrical path
from the user directly to the ESD ground. Foot grounders provide a ground path from the moisture layer on the wearer’s
skin through socks and via the conductive tab and dissipative rubber to the dissipative or conductive floor surface.
Accepted industry standards dictate that foot grounders be worn on both feet to ensure that one foot is always in contact
with the floor at all times. It is important that personnel are instructed in the proper use and maintenance of foot grounders,
especially the necessity of placing the grounding tab between the foot and shoe. Download Technical Bulletin PPE-5006.E from
www.Vermason.co.uk for details.
Look for many of our items which utilise an industrial dual layer rubber with an inner scrim. This produces
exceptionally tear resistant foot grounders and provides long life, saving you money.
Vermason foot grounders are made in our Rochester, New Hampshire, USA factory. Manufacturing our products ensures you
high quality standards. This also gives us the ability to make custom foot grounders. Just call Customer Service for a quote!
All Vermason foot grounders, when used with an ESD protected floor, fulfill the requirements of EN 61340-5-1.
