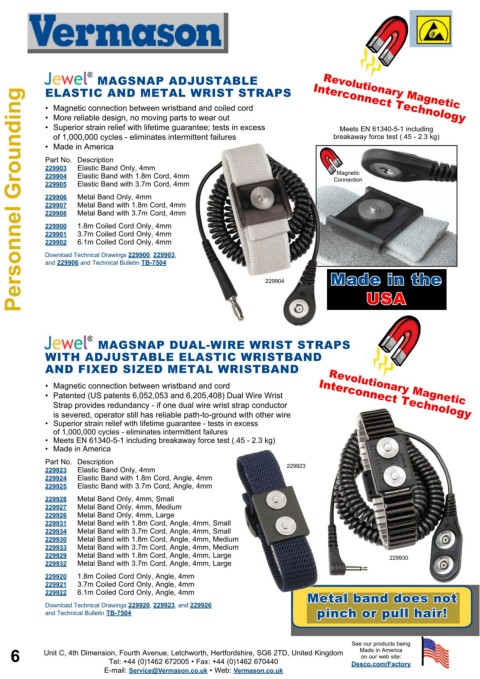

Page 6 - VERMASON ESD katalógus

MAGSNAP ADJUSTABLE
ELASTIC AND METAL WRIST STRAPS Revolutionary Magnetic
Personnel Grounding
• Magnetic connection between wristband and coiled cord Interconnect Technology
• More reliable design, no moving parts to wear out
• Superior strain relief with lifetime guarantee; tests in excess Meets EN 61340-5-1 including
of 1,000,000 cycles - eliminates intermittent failures breakaway force test (.45 - 2.3 kg)
• Made in America
Part No. Description
229903 Elastic Band Only, 4mm
229904 Elastic Band with 1.8m Cord, 4mm Magnetic
229905 Elastic Band with 3.7m Cord, 4mm Connection
229906 Metal Band Only, 4mm
229907 Metal Band with 1.8m Cord, 4mm
229908 Metal Band with 3.7m Cord, 4mm
229900 1.8m Coiled Cord Only, 4mm
229901 3.7m Coiled Cord Only, 4mm
229902 6.1m Coiled Cord Only, 4mm
Download Technical Drawings 229900, 229903,
and 229906 and Technical Bulletin TB-7504
Made in the
229904
USA

MAGSNAP DUAL-WIRE WRIST STRAPS
WITH ADJUSTABLE ELASTIC WRISTBAND
AND FIXED SIZED METAL WRISTBAND

• Magnetic connection between wristband and cord Revolutionary Magnetic
• Patented (US patents 6,052,053 and 6,205,408) Dual Wire Wrist Interconnect Technology
Strap provides redundancy - if one dual wire wrist strap conductor
is severed, operator still has reliable path-to-ground with other wire
• Superior strain relief with lifetime guarantee - tests in excess
of 1,000,000 cycles - eliminates intermittent failures
• Meets EN 61340-5-1 including breakaway force test (.45 - 2.3 kg)
• Made in America
Part No. Description
229923 Elastic Band Only, 4mm 229923
229924 Elastic Band with 1.8m Cord, Angle, 4mm
229925 Elastic Band with 3.7m Cord, Angle, 4mm
229928 Metal Band Only, 4mm, Small
229927 Metal Band Only, 4mm, Medium
229926 Metal Band Only, 4mm, Large
229931 Metal Band with 1.8m Cord, Angle, 4mm, Small
229934 Metal Band with 3.7m Cord, Angle, 4mm, Small
229930 Metal Band with 1.8m Cord, Angle, 4mm, Medium
229933 Metal Band with 3.7m Cord, Angle, 4mm, Medium
229929 Metal Band with 1.8m Cord, Angle, 4mm, Large 229930
229932 Metal Band with 3.7m Cord, Angle, 4mm, Large
229920 1.8m Coiled Cord Only, Angle, 4mm
229921 3.7m Coiled Cord Only, Angle, 4mm
229922 6.1m Coiled Cord Only, Angle, 4mm Metal band does not
Download Technical Drawings 229920, 229923, and 229926
and Technical Bulletin TB-7504 pinch or pull hair!

See our products being
6 Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom Made in America
on our web site:
Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk Desco.com/Factory
