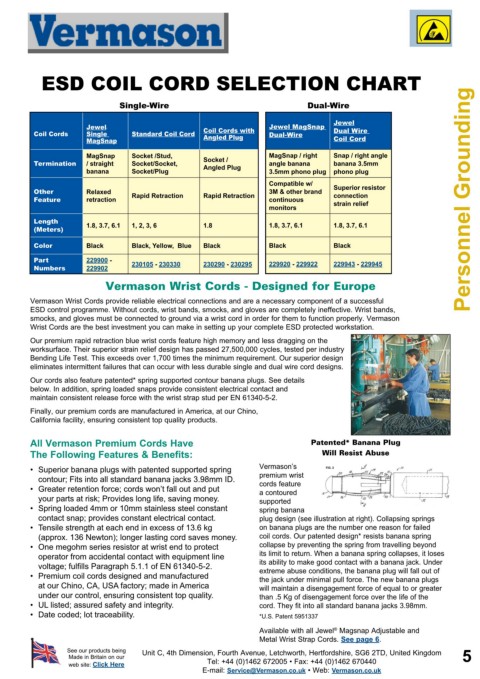

Page 5 - VERMASON ESD katalógus

ESD COIL CORD SELECTION CHART

Single-Wire Dual-Wire

Jewel
Jewel Coil Cords with Jewel MagSnap Dual Wire
Coil Cords Single Standard Coil Cord Angled Plug Dual-Wire
MagSnap Coil Cord

MagSnap Socket /Stud, Socket / MagSnap / right Snap / right angle
Termination / straight Socket/Socket, Angled Plug angle banana banana 3.5mm
banana Socket/Plug 3.5mm phono plug phono plug
Compatible w/
Other Relaxed 3M & other brand Superior resistor
Feature retraction Rapid Retraction Rapid Retraction continuous connection Personnel Grounding
monitors strain relief
Length
(Meters) 1.8, 3.7, 6.1 1, 2, 3, 6 1.8 1.8, 3.7, 6.1 1.8, 3.7, 6.1
Color Black Black, Yellow, Blue Black Black Black

Part 229900 - 230105 - 230330 230290 - 230295 229920 - 229922 229943 - 229945
Numbers 229902
Vermason Wrist Cords - Designed for Europe

Vermason Wrist Cords provide reliable electrical connections and are a necessary component of a successful
ESD control programme. Without cords, wrist bands, smocks, and gloves are completely ineffective. Wrist bands,
smocks, and gloves must be connected to ground via a wrist cord in order for them to function properly. Vermason
Wrist Cords are the best investment you can make in setting up your complete ESD protected workstation.
Our premium rapid retraction blue wrist cords feature high memory and less dragging on the
worksurface. Their superior strain relief design has passed 27,500,000 cycles, tested per industry
Bending Life Test. This exceeds over 1,700 times the minimum requirement. Our superior design
eliminates intermittent failures that can occur with less durable single and dual wire cord designs.
Our cords also feature patented* spring supported contour banana plugs. See details
below. In addition, spring loaded snaps provide consistent electrical contact and
maintain consistent release force with the wrist strap stud per EN 61340-5-2.
Finally, our premium cords are manufactured in America, at our Chino,
California facility, ensuring consistent top quality products.

All Vermason Premium Cords Have Patented* Banana Plug
The Following Features & Benefits: Will Resist Abuse
• Superior banana plugs with patented supported spring Vermason’s
premium wrist
contour; Fits into all standard banana jacks 3.98mm ID. cords feature
• Greater retention force; cords won’t fall out and put a contoured
your parts at risk; Provides long life, saving money. supported
• Spring loaded 4mm or 10mm stainless steel constant spring banana
contact snap; provides constant electrical contact. plug design (see illustration at right). Collapsing springs
• Tensile strength at each end in excess of 13.6 kg on banana plugs are the number one reason for failed
(approx. 136 Newton); longer lasting cord saves money. coil cords. Our patented design* resists banana spring
• One megohm series resistor at wrist end to protect collapse by preventing the spring from travelling beyond
operator from accidental contact with equipment line its limit to return. When a banana spring collapses, it loses
its ability to make good contact with a banana jack. Under
voltage; fulfills Paragraph 5.1.1 of EN 61340-5-2. extreme abuse conditions, the banana plug will fall out of
• Premium coil cords designed and manufactured the jack under minimal pull force. The new banana plugs
at our Chino, CA, USA factory; made in America will maintain a disengagement force of equal to or greater
under our control, ensuring consistent top quality. than .5 Kg of disengagement force over the life of the
• UL listed; assured safety and integrity. cord. They fit into all standard banana jacks 3.98mm.
• Date coded; lot traceability. *U.S. Patent 5951337

Available with all Jewel Magsnap Adjustable and
®
Metal Wrist Strap Cords. See page 6.
