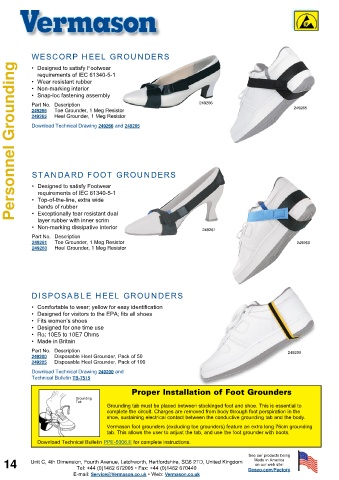

Page 14 - VERMASON ESD katalógus

WESCORP HEEL GROUNDERS

Personnel Grounding
• Designed to satisfy Footwear
requirements of IEC 61340-5-1
• Wear resistant rubber
• Non-marking interior
• Snap-loc fastening assembly
Part No. Description 249266
249266 Toe Grounder, 1 Meg Resistor 249265
249265 Heel Grounder, 1 Meg Resistor
Download Technical Drawing 249266 and 249265

STANDARD FOOT GROUNDERS

• Designed to satisfy Footwear
requirements of IEC 61340-5-1
• Top-of-the-line, extra wide
bands of rubber
• Exceptionally tear resistant dual
layer rubber with inner scrim
• Non-marking dissipative interior 249261
Part No. Description
249261 Toe Grounder, 1 Meg Resistor 249260
249260 Heel Grounder, 1 Meg Resistor

DISPOSABLE HEEL GROUNDERS
• Comfortable to wear; yellow for easy identification
• Designed for visitors to the EPA; fits all shoes
• Fits women’s shoes
• Designed for one time use
• RG: 10E5 to 10E7 Ohms
• Made in Britain
Part No. Description 249200
249200 Disposable Heel Grounder, Pack of 50
249205 Disposable Heel Grounder, Pack of 100
Download Technical Drawing 249200 and
Technical Bulletin TB-7515

Proper Installation of Foot Grounders
Grounding
Tab
Grounding tab must be placed between stockinged foot and shoe. This is essential to
com plete the circuit. Charges are removed from body through foot perspiration in the
shoe, sustaining electrical contact between the conductive grounding tab and the body.
Vermason foot grounders (excluding toe grounders) feature an extra long 76cm grounding
tab. This allows the user to adjust the tab, and use the foot grounder with boots.
Download Technical Bulletin PPE-5006.E for complete instructions.
