Page 34 - Prostat catalogue
P. 34
FEATURED PRODUCTS
PGA-710B AUTOANALYSIS SYSTEM
MEASURE, RECORD, ANALYZE & REPORT ELECTROSTATIC
VOLTAGE GENERATION AND DECAY PERFORMANCE WALKING TEST
• Connects to a Field Meter and Charge Plate Monitor
• Records Walking Voltages per ANSI/ESD STM 97.2 and IEC 61340-4-5
• Analyzes Offset and Decay Times of Ionizers per ANSI/ESD SP3.3 and ANSI/ESD STM3.1
• View Voltages in real time on your Computer with the included Auto-analysis Software
• Professional Reports include Min, Max and Average of Voltage Generation or Decay Times
• Records and Reports Temperature and Relative Humidity
• Powered by a Rechargeable Battery
• Meets requirements of ANSI/ESD S20.20
• Certificate of Calibration Traceable to NIST included

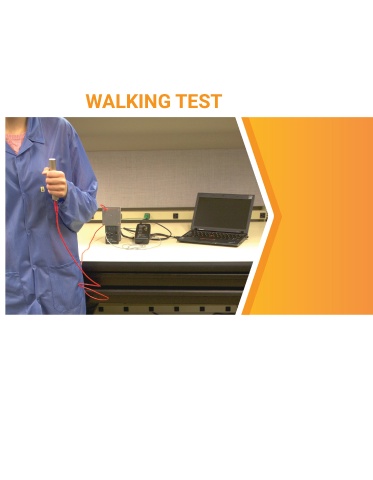

PGA-710 WALKING TEST SYSTEM KIT
MEASURE THE VOLTAGE ON A PERSON IN COMBINATION
WITH FLOOR MATERIALS AND FOOTWEAR PER ANSI/ESD S20�20
• Measure the Electrostatic Voltage of a Person while Walking
• Tests ESD Floor in Accordance with ANSI/ESD STM 97.2 and IEC 61340-4-5
• Includes Prostat Auto-analysis Software for Windows
• Time Constant of less than 200ms (0.2 sec)
• Full Reporting to includes Min, Max and Average Voltages
• Reports Accurate Temperature and Relative Humidity
• Includes a Portable Field Meter and Charge Plate Monitor
• Measures the Offset Voltages and Decay Times of Ionizers
• Certificate of Calibration Traceable to NIST included
34 35
