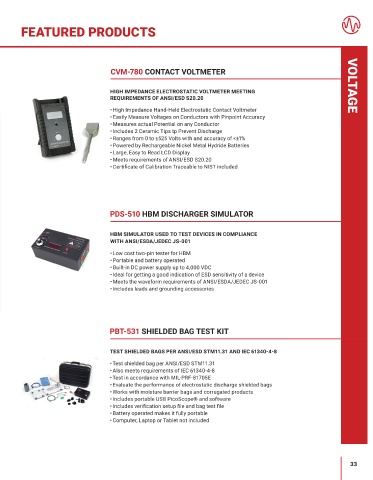

Page 33 - Prostat catalogue
P. 33
FEATURED PRODUCTS
CVM-780 CONTACT VOLTMETER
HIGH IMPEDANCE ELECTROSTATIC VOLTMETER MEETING VOLTAGE
REQUIREMENTS OF ANSI/ESD S20�20
• High Impedance Hand-Held Electrostatic Contact Voltmeter
• Easily Measure Voltages on Conductors with Pinpoint Accuracy
• Measures actual Potential on any Conductor
• Includes 2 Ceramic Tips tp Prevent Discharge
• Ranges from 0 to ±525 Volts with and accuracy of <±1%
• Powered by Rechargeable Nickel Metal Hydride Batteries
• Large, Easy to Read LCD Display
• Meets requirements of ANSI/ESD S20.20
• Certificate of Calibration Traceable to NIST included
PDS-510 HBM DISCHARGER SIMULATOR
HBM SIMULATOR USED TO TEST DEVICES IN COMPLIANCE
WITH ANSI/ESDA/JEDEC JS-001
• Low cost two-pin tester for HBM
• Portable and battery operated
• Built-in DC power supply up to 4,000 VDC
• Ideal for getting a good indication of ESD sensitivity of a device
• Meets the waveform requirements of ANSI/ESDA/JEDEC JS-001
• Includes leads and grounding accessories
PBT-531 SHIELDED BAG TEST KIT
TEST SHIELDED BAGS PER ANSI/ESD STM11�31 AND IEC 61340-4-8
• Test shielded bag per ANSI/ESD STM11.31
• Also meets requirements of IEC 61340-4-8
• Test in accordance with MIL-PRF-81705E
• Evaluate the performance of electrostatic discharge shielded bags
• Works with moisture barrier bags and corrugated products
• Includes portable USB PicoScope® and software
• Includes verification setup file and bag test file
• Battery operated makes it fully portable
• Computer, Laptop or Tablet not included
32 33
