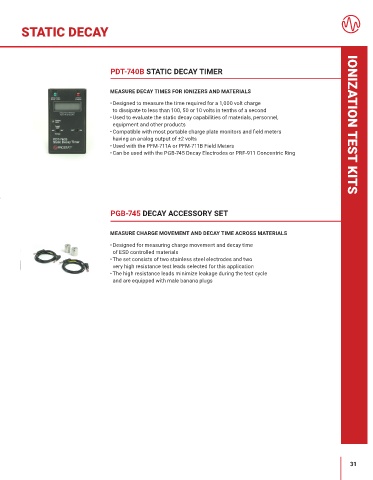

Page 31 - Prostat catalogue

IONIZATION TEST KITS SELECTION GUIDE STATIC DECAY

PDT-740B STATIC DECAY TIMER

MEASURE DECAY TIMES FOR IONIZERS AND MATERIALS

• Designed to measure the time required for a 1,000 volt charge
to dissipate to less than 100, 50 or 10 volts in tenths of a second
• Used to evaluate the static decay capabilities of materials, personnel,
equipment and other products IONIZATION TEST KITS
• Compatible with most portable charge plate monitors and field meters
having an analog output of ±2 volts
• Used with the PFM-711A or PFM-711B Field Meters
• Can be used with the PGB-745 Decay Electrodes or PRF-911 Concentric Ring

PFK-105 PFK-101 PIK-110
Ionization Test Kit Basic Field Kit Ionization Kit

Measure Electrostatic Fields √ √ √ PGB-745 DECAY ACCESSORY SET

Analyze and Balance Ionizers √ √ √
MEASURE CHARGE MOVEMENT AND DECAY TIME ACROSS MATERIALS
Measure Decay Times √ √ √ • Designed for measuring charge movement and decay time

Measure Temperature and --- √ √ of ESD controlled materials
Humidity • The set consists of two stainless steel electrodes and two
very high resistance test leads selected for this application
Measure Air Flow Speed --- --- √ • The high resistance leads minimize leakage during the test cycle
and are equipped with male banana plugs
Includes Grounding Accessories --- √ √

Meets ANSI/ESD S3.1 √ √ √

Meets ANSI/ESD SP3.3 √ √ √
