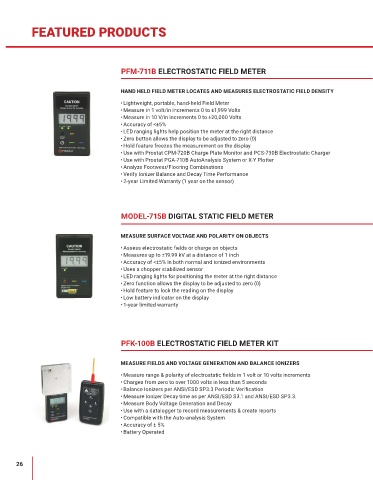

FEATURED PRODUCTS ELECTROSTATIC FIELD METER SELECTION GUIDE

PFM-711B ELECTROSTATIC FIELD METER

HAND HELD FIELD METER LOCATES AND MEASURES ELECTROSTATIC FIELD DENSITY

• Lightweight, portable, hand-held Field Meter
• Measure in 1 volt/in increments 0 to ±1,999 Volts
• Measure in 10 V/in increments 0 to ±20,000 Volts
• Accuracy of <±5%
• LED ranging lights help position the meter at the right distance PFM-711B MODEL-715B
• Zero button allows the display to be adjusted to zero (0)
• Hold feature freezes the measurement on the display ELECTROSTATIC FIELD METER DIGITAL STATIC FIELD METER
• Use with Prostat CPM-720B Charge Plate Monitor and PCS-730B Electrostatic Charger ELECTROSTATIC FIELD METERS
• Use with Prostat PGA-710B AutoAnalysis System or X-Y Plotter
• Analyze Footwear/Flooring Combinations Chopper-Stabilized Sensor √ √
• Verify Ionizer Balance and Decay Time Performance
• 2-year Limited Warranty (1 year on the sensor) Overall Range Low Range: 0 V to ±1999 V 0 V to ±19�99 kV
High Range: 0 V to ±19�99 kV
Low Range: 1 Volt increment
Display Resolution 10 Volt increments
High Range: 10 Volt increments
Better than ±5% of reading, ±2
MODEL-715B DIGITAL STATIC FIELD METER Accuracy Voltage Display counts Better than ±5% of reading, ±2 counts
Display readings are updated Display readings are updated every
Sampling Rate
MEASURE SURFACE VOLTAGE AND POLARITY ON OBJECTS every 0.5 seconds 0.5 seconds

• Assess electrostatic fields or charge on objects Digits 3-1/2 digits 3-1/2 digits
• Measures up to ±19�99 kV at a distance of 1 inch
• Accuracy of <±5% in both normal and ionized environments Battery Power 9 volt alkaline battery 9 volt alkaline battery
• Uses a chopper stabilized sensor
• LED ranging lights for positioning the meter at the right distance Approx. 20 hours (of continu-
• Zero function allows the display to be adjusted to zero (0) Battery Life ous use) Approx. 20 hours (of continuous use)
• Hold feature to lock the reading on the display
• Low battery indicator on the display Battery Status Indicator √ √
• 1-year limited warranty
Measurement Hold √ √

Spot Resolution as described in ANSI/ √ ---
ESD S20.20
PFK-100B ELECTROSTATIC FIELD METER KIT Analog Output √ ---

MEASURE FIELDS AND VOLTAGE GENERATION AND BALANCE IONIZERS Response Time Less than 180ms (90-10%) ---
• Measure range & polarity of electrostatic fields in 1 volt or 10 volts increments Ground Snap √ √
• Charges from zero to over 1000 volts in less than 5 seconds
• Balance Ionizers per ANSI/ESD SP3.3 Periodic Verification CPM-720B Charge Plate Mon-
• Measure Ionizer Decay time as per ANSI/ESD S3.1 and ANSI/ESD SP3.3. Recommended Charge Plate Monitor itor ---
• Measure Body Voltage Generation and Decay
• Use with a datalogger to record measurements & create reports Operating Relative Humidity 0% – 80%, non-condensing 0% – 80%, non-condensing
• Compatible with the Auto-analysis System
• Accuracy of ± 5% Warranty 2 years 1 1 year
• Battery Operated
1 Warranty on circuit board, display and membrane. Warranty on the sensor is 1 year and is limited to a defective sensor that was not
dropped or used for measuring a source greater than 20kV�
