GROUNDING: WRIST STRAPS GROUNDING: ESD MATS

PWS-610M FABRIC BAND WRIST STRAP

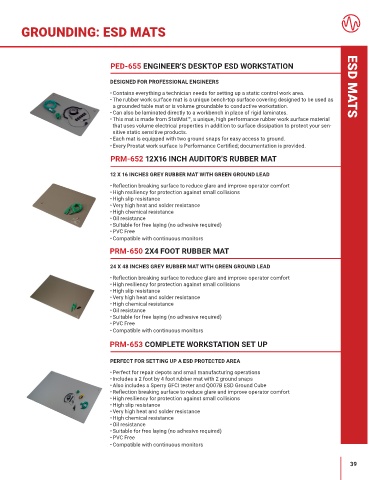

PED-655 ENGINEER'S DESKTOP ESD WORKSTATION
DESIGNED FOR DURABILITY, LIGHTWEIGHT PORTABILITY AND COMFORT
DESIGNED FOR PROFESSIONAL ENGINEERS
• Comfortable & Operator Friendly ESD MATS
• Includes a 12 foot cord with 1 Megohm Resistor • Contains everything a technician needs for setting up a static control work area.
• Adjustable buckle with a 4mm snap • The rubber work surface mat is a unique bench-top surface covering designed to be used as
• Built-in 10mm male snap with cap a grounded table mat or is volume groundable to conductive workstation.
• Uses 1/3 the working or storage space • Can also be laminated directly to a workbench in place of rigid laminates.
• Metal Alligator Clip included • This mat is made from StatMat™, a unique, high performance rubber work surface material
• One size fits all that uses volume electrical properties in addition to surface dissipation to protect your sen-
• Meets the requirements of ANSI/ESD S20.20 and ANSI/ESD S1.1 sitive static sensitive products�
• Each mat is equipped with two ground snaps for easy access to ground.
PWS-620 METAL BAND WRIST STRAP • Every Prostat work surface is Performance Certified; documentation is provided.

METAL WRISTBAND ADJUSTS TO VIRTUALLY ANY WRIST SIZE PRM-652 12X16 INCH AUDITOR'S RUBBER MAT
• Includes a 12 foot ground cord with 1 megohm resistor 12 X 16 INCHES GREY RUBBER MAT WITH GREEN GROUND LEAD
• Adjustable strap to fit virtually any wrist size
• Built-in 4mm snap • Reflection breaking surface to reduce glare and improve operator comfort
• Comes manufactured in 130mm lengths • High resiliency for protection against small collisions
• Can be enlarged using one or more of the five (5) 10mm nylon expansion links included • High slip resistance
• Meets the requirements of ANSI/ESD S20.20 and ANSI/ESD S1.1 • Very high heat and solder resistance
• High chemical resistance
PWS-661F GROUNDING SET-FABRIC CUFF • Oil resistance
• Suitable for free laying (no adhesive required)
• PVC Free
GROUNDING SET WITH FABRIC WRIST STRAP
• Compatible with continuous monitors
• Includes the Triple Socket Grounding Cube
• Includes a 15 foot long Ground Cord PRM-650 2X4 FOOT RUBBER MAT
• Includes an adjustable Fabric Band Wrist Strap
• The Wrist Strap includes a 10 foot cord with 1 meg Ohm Resistor 24 X 48 INCHES GREY RUBBER MAT WITH GREEN GROUND LEAD
• Recommended for use on tested electrical outlets
• Replaces expensive grounding blocks and circuit indicators • Reflection breaking surface to reduce glare and improve operator comfort
• Convenient connection for ESD grounding • High resiliency for protection against small collisions
• In accordance with En 100015/1, ANSI/ESD S1.1 and ANSI/ESD S6.1 • High slip resistance
• Very high heat and solder resistance
PWS-661M GROUNDING SET-METAL CUFF • High chemical resistance
• Oil resistance
• Suitable for free laying (no adhesive required)
GROUNDING SET WITH METAL WRIST STRAP • PVC Free
• Includes the Triple Socket Grounding Cube • Compatible with continuous monitors
• Includes a 15 foot long Ground Cord
• Includes an adjustable Metal Band Wrist Strap PRM-653 COMPLETE WORKSTATION SET UP
• The Wrist Strap includes a 10 foot cord with 1 meg Ohm Resistor
• Recommended for use on tested electrical outlets PERFECT FOR SETTING UP A ESD PROTECTED AREA
• Replaces expensive grounding blocks and circuit indicators
• Convenient connection for ESD grounding • Perfect for repair depots and small manufacturing operations
• In accordance with En 100015/1, ANSI/ESD S1.1 and ANSI/ESD S6.1 • Includes a 2 foot by 4 foot rubber mat with 2 ground snaps
• Also includes a Sperry GFCI tester and Q007B ESD Ground Cube
PWS-611PGC NO RESISTOR GROUNDING CORD • Reflection breaking surface to reduce glare and improve operator comfort
• High resiliency for protection against small collisions
• High slip resistance
GOUNDING CORD FOR USE WITH THE PCF-825B GLOVE CAFE FIXTURE • Very high heat and solder resistance
• Wrist strap ground cord • High chemical resistance
• Without resistor • Oil resistance
• 6 foot long (1.83 meters) • Suitable for free laying (no adhesive required)
• 4mm classic snap • PVC Free
• Used with the PCF-825B Glove CAFE Fixture • Compatible with continuous monitors
