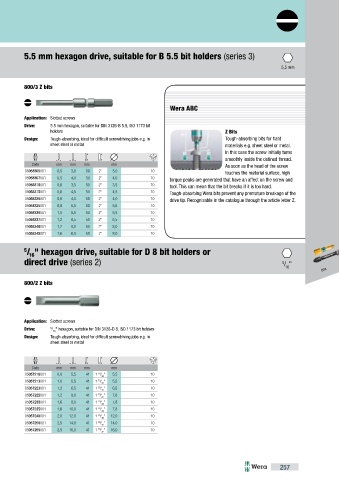

Page 261 - WERA katalógus

5.5 mm hexagon drive, suitable for B 5.5 bit holders (series 3)

5,5 mm

800/3 Z bits

Wera ABC
Application: Slotted screws
Drive: 5.5 mm hexagon, suitable for DIN 3126-B 5.5, ISO 1173 bit
holders Z Bits
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in Tough-absorbing bits for hard
sheet steel or metal materials e.g. sheet steel or metal.
In this case the screw initially turns
smoothly inside the defi ned thread.
Code mm mm mm mm As soon as the head of the screw
05058305001 0,5 3,0 50 2" 3,0 10 touches the material surface, high
05058307001 0,5 4,0 50 2" 4,0 10 torque peaks are generated that have an aff ect on the screw and
05058310001 0,6 3,5 50 2" 3,5 10 tool. This can mean that the bit breaks if it is too hard.
05058315001 0,6 4,5 50 2" 4,5 10 Tough-absorbing Wera bits prevent any premature breakage of the
05058320001 0,8 4,0 50 2" 4,0 10 drive tip. Recognisable in the catalogue through the article letter Z.
05058325001 0,8 5,5 50 2" 5,5 10
05058330001 1,0 5,5 50 2" 5,5 10
05058337001 1,2 6,5 50 2" 6,5 10
05058340001 1,2 8,0 50 2" 8,0 10
05058345001 1,6 8,0 50 2" 8,0 10

5 / " hexagon drive, suitable for D 8 bit holders or
16
direct drive (series 2) 5 / "
16
Bits
800/2 Z bits

Application: Slotted screws
Drive: 5 / " hexagon, suitable for DIN 3126-D 8, ISO 1173 bit holders
16
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in
sheet steel or metal

Code mm mm mm mm
05057210001 0,8 5,5 41 1 / " 5,5 10
19
32
05057213001 1,0 5,5 41 1 / " 5,5 10
19
32
05057223001 1,2 6,5 41 1 / " 6,5 10
19
32
19
05057225001 1,2 8,0 41 1 / " 7,8 10
32
05057230001 1,6 8,0 41 1 / " 7,8 10
19
32
19
05057235001 1,6 10,0 41 1 / " 7,8 10
32
05057240001 2,0 12,0 41 1 / " 12,0 10
19
32
05057250001 2,5 14,0 41 1 / " 14,0 10
19
32
19
05057255001 2,5 16,0 41 1 / " 16,0 10
32
