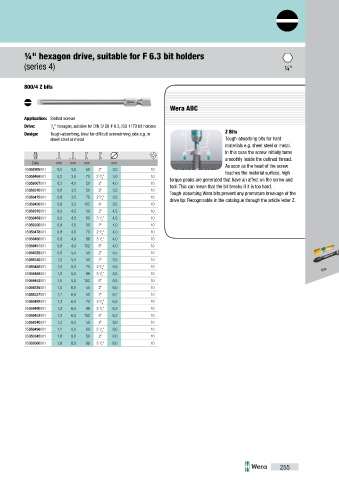

Page 259 - WERA katalógus

¼" hexagon drive, suitable for F 6.3 bit holders
(series 4) ¼"

800/4 Z bits

Wera ABC
Application: Slotted screws
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders
4
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in Z Bits
sheet steel or metal Tough-absorbing bits for hard
materials e.g. sheet steel or metal.
In this case the screw initially turns
smoothly inside the defi ned thread.
Code mm mm mm mm As soon as the head of the screw
05059305001 0,5 3,0 50 2" 3,0 10
touches the material surface, high
05059466001 0,5 3,0 70 2 / " 3,0 10 torque peaks are generated that have an aff ect on the screw and
3
4
05059307001 0,5 4,0 50 2" 4,0 10 tool. This can mean that the bit breaks if it is too hard.
05059310001 0,6 3,5 50 2" 3,5 10
Tough-absorbing Wera bits prevent any premature breakage of the
05059472001 0,6 3,5 70 2 / " 3,5 10
3
4 drive tip. Recognisable in the catalogue through the article letter Z.
05059450001 0,6 3,5 152 6" 3,5 10
05059315001 0,6 4,5 50 2" 4,5 10
05059489001 0,6 4,5 89 3 / " 4,5 10
1
2
05059320001 0,8 4,0 50 2" 4,0 10
05059478001 0,8 4,0 70 2 / " 4,0 10
3
4
05059480001 0,8 4,0 89 3 / " 4,0 10
1
2
05059451001 0,8 4,0 152 6" 4,0 10
05059325001 0,8 5,5 50 2" 5,5 10
05059330001 1,0 5,5 50 2" 5,5 10
3
05059486001 1,0 5,5 70 2 / " 5,5 10
4 Bits
1
05059488001 1,0 5,5 89 3 / " 5,5 10
2
05059452001 1,0 5,5 152 6" 5,5 10
05059335001 1,0 6,0 50 2" 6,0 10
05059337001 1,2 6,5 50 2" 6,2 10
05059492001 1,2 6,5 70 2 / " 6,2 10
3
4
05059490001 1,2 6,5 89 3 / " 6,2 10
1
2
05059453001 1,2 6,5 152 6" 6,2 10
05059340001 1,2 8,0 50 2" 8,0 10
05059496001 1,2 8,0 89 3 / " 8,0 10
1
2
05059345001 1,6 8,0 50 2" 8,0 10
05059500001 1,6 8,0 89 3 / " 8,0 10
1
2

255
