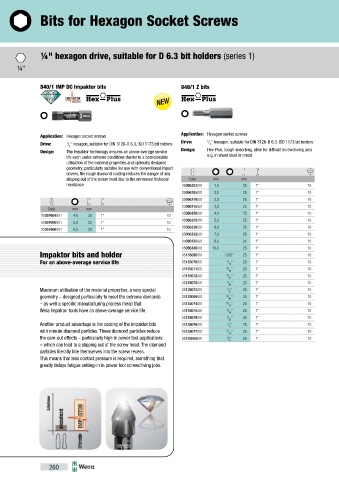

Page 264 - WERA katalógus

Bits for Hexagon Socket Screws

¼" hexagon drive, suitable for D 6.3 bit holders (series 1)

¼"

840/1 IMP DC Impaktor bits 840/1 Z bits

Application: Hexagon socket screws Application: Hexagon socket screws
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
4
Design: The Impaktor technology ensures an above-average service Design: Hex-Plus, tough-absorbing, ideal for diffi cult screwdriving jobs
life even under extreme conditions thanks to a best-possible e.g. in sheet steel or metal
utilisation of the material properties and optimally designed
geometry, particularly suitable for use with conventional impact
drivers, the rough diamond coating reduces the danger of any
slipping out of the screw head due to the enhanced frictional Code mm mm
resistance 05056303001 1,5 25 1" 10
05056305001 2,0 25 1" 10
05056310001 2,5 25 1" 10
05056315001 3,0 25 1" 10
Code mm mm
05056320001 4,0 25 1" 10
05057604001 4,0 25 1" 10
05056325001 5,0 25 1" 10
05057605001 5,0 25 1" 10
05056330001 6,0 25 1" 10
05057606001 6,0 25 1" 10
05056332001 7,0 25 1" 10

05056335001 8,0 25 1" 10
05056340001 10,0 25 1" 10
Impaktor bits and holder 05135060001 0,05" 25 1" 10
For an above-average service life 05135070001 1 / " 25 1" 10
16
05135071001 5 / " 25 1" 10
64
05135072001 3 / " 25 1" 10
32
05135078001 7 / " 25 1" 10
64
Maximum utilisation of the material properties, a very special 05135073001 1 / " 25 1" 10
8
geometry – designed particularly to meet the extreme demands 05135069001 9 / " 25 1" 10
64
– as well a specifi c manufacturing process mean that 05135074001 5 / " 25 1" 10
32
Wera Impaktor tools have an above-average service life. 05135075001 3 / " 25 1" 10
16
05135079001 7 / " 25 1" 10
32
Another product advantage is the coating of the Impaktor bits 05135076001 1 / " 25 1" 10
4
with minute diamond particles. These diamond particles reduce 05135077001 5 / " 25 1" 10
16
the cam-out eff ects – particularly high in power tool applications 05135068001 3 / " 25 1" 10
8
– which can lead to a slipping out of the screw head. The diamond
particles literally bite themselves into the screw recess.
This means that less contact pressure is required, something that
greatly delays fatigue setting-in in power tool screwdriving jobs.
