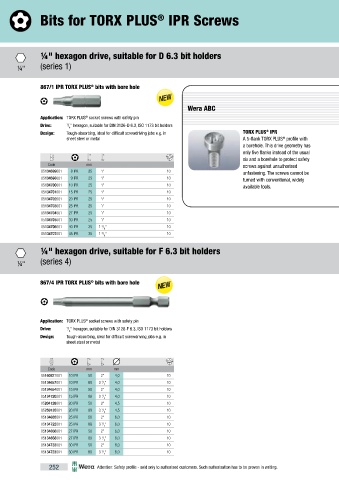

Page 256 - WERA katalógus

Bits for TORX PLUS IPR Screws
®

¼" hexagon drive, suitable for D 6.3 bit holders

¼" (series 1)

867/1 IPR TORX PLUS bits with bore hole
®

Wera ABC
Application: TORX PLUS socket screws with safety pin
®
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
®
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in TORX PLUS IPR
sheet steel or metal A 5-fl ank TORX PLUS profi le with
®
a borehole. This drive geometry has
only fi ve fl anks instead of the usual
six and a borehole to protect safety
Code mm screws against unauthorised
05134699001 8 IPR 25 1" 10 unfastening. The screws cannot be
05134698001 9 IPR 25 1" 10 turned with conventional, widely
05134700001 10 IPR 25 1" 10 available tools.
05134701001 15 IPR 25 1" 10
05134702001 20 IPR 25 1" 10
05134703001 25 IPR 25 1" 10
05134704001 27 IPR 25 1" 10
05134705001 30 IPR 25 1" 10
05134706001 40 IPR 35 1 / " 10
3
8
05134707001 45 IPR 35 1 / " 10
3
8
¼" hexagon drive, suitable for F 6.3 bit holders
¼" (series 4)

867/4 IPR TORX PLUS bits with bore hole
®

Application: TORX PLUS socket screws with safety pin
®
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders
4
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in
sheet steel or metal

Code mm mm
05160821001 10 IPR 50 2" 4,0 10
05134657001 10 IPR 89 3 / " 4,0 10
1
2
05134654001 15 IPR 50 2" 4,0 10
05134720001 15 IPR 89 3 / " 4,0 10
1
2
05204126001 20 IPR 50 2" 4,5 10
05259135001 20 IPR 89 3 / " 4,5 10
1
2
05134655001 25 IPR 50 2" 6,0 10
05134722001 25 IPR 89 3 / " 6,0 10
1
2
05134656001 27 IPR 50 2" 6,0 10
05134658001 27 IPR 89 3 / " 6,0 10
1
2
05134732001 30 IPR 50 2" 6,0 10
05134723001 30 IPR 89 3 / " 6,0 10
1
2
252 Attention: Safety profi le - sold only to authorised customers. Such authorisation has to be proven in writing.
