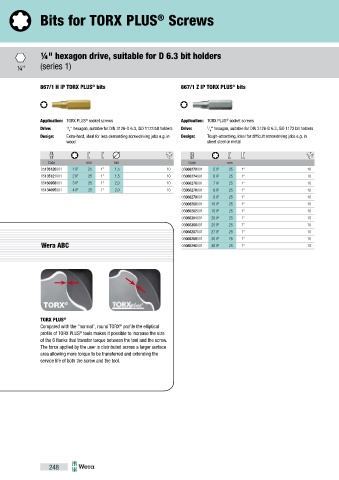

Page 252 - WERA katalógus

Bits for TORX PLUS Screws
®

¼" hexagon drive, suitable for D 6.3 bit holders

¼" (series 1)

867/1 H IP TORX PLUS bits 867/1 Z IP TORX PLUS bits
®
®

®
®
Application: TORX PLUS socket screws Application: TORX PLUS socket screws
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4 4
Design: Extra-hard, ideal for less demanding screwdriving jobs e.g. in Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in
wood sheet steel or metal

Code mm mm Code mm
05135120001 1 IP 25 1" 1,5 10 05066272001 5 IP 25 1" 10
05135121001 2 IP 25 1" 1,5 10 05066274001 6 IP 25 1" 10
05160956001 3 IP 25 1" 2,0 10 05066276001 7 IP 25 1" 10
05134695001 4 IP 25 1" 2,0 10 05066278001 8 IP 25 1" 10
05066279001 9 IP 25 1" 10
05066280001 10 IP 25 1" 10
05066282001 15 IP 25 1" 10
05066284001 20 IP 25 1" 10
05066286001 25 IP 25 1" 10
05066287001 27 IP 25 1" 10
05066288001 30 IP 25 1" 10
Wera ABC 05066290001 40 IP 25 1" 10

TORX ®

TORX PLUS ®
Compared with the "normal", round TORX profi le the elliptical
®
profi le of TORX PLUS tools makes it possible to increase the size
®
of the 6 fl anks that transfer torque between the tool and the screw.
The force applied by the user is distributed across a larger surface
area allowing more torque to be transferred and extending the
service life of both the screw and the tool.
