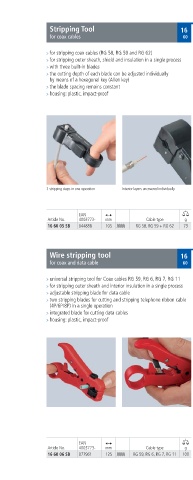

DISMANTLING TOOLS


                   Stripping Tool                                16
                   for coax cables                               60

                    > for stripping coax cables (RG 58, RG 59 and RG 62)
                    > for stripping outer sheath, shield and insulation in a single process
                    > with three built in blades
                    > the cutting depth of each blade can be adjusted individually
                   by means of a hexagonal key (Allen key)
                    > the blade spacing remains constant
                    > housing: plastic, impact proof                   16 60 05 SB








                                                                         1


                                                                         2


                                                                         3

                 3 stripping steps in one operation  Interior layers uncovered individually  Dismantling of Coax cable in three steps




                             EAN
                  Article No    003773   mm         Cable type    g
                  16 60 05 SB  0  888  105       RG 58, RG 59   RG 62  73




                   Wire stripping tool                           16
                   for coax and data cable                       60


                    > universal stripping tool for Coax cables RG 59, RG 6, RG 7, RG 11
                    > for stripping outer sheath and interior insulation in a single process
                    > adjustable stripping blade for data cable
                    > two stripping blades for cutting and stripping telephone ribbon cable
                   ( P/6P/8P) in a single operation
                    > integrated blade for cutting data cables
                    > housing: plastic, impact proof


                                                                       16 60 06 SB





















                             EAN
                  Article No    003773   mm         Cable type    g
                  16 60 06 SB  077961  125      RG 59, RG 6, RG 7, RG 11  100
