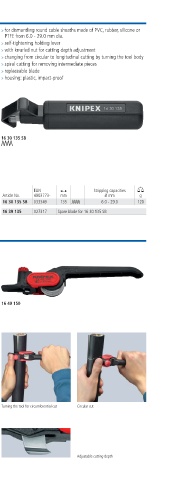

DISMANTLING TOOLS
Dismantling Tool 16 > for dismantling round cable sheaths made of PVC, rubber, silicone or
30 PTFE from 6 0 29 0 mm dia
> self tightening holding lever
> with knurled nut for cutting depth adjustment
> changing from circular to longitudinal cutting by turning the tool body
> spiral cutting for removing intermediate pieces
> replaceable blade
> housing: plastic, impact proof
Setting the tool for circular cutting 16 30 135 SB
EAN Stripping capacities
Article No 003773 mm Ø mm g
16 30 135 SB 0333 9 135 6 0 29 0 120
16 39 135 027317 Spare blade for 16 30 135 S$
Longitudinal cut Spiral cutting
Dismantling Tool 16
40
> for dismantling round cables exceeding 25 0 mm dia
> removes all kinds of insulation layers
> suitable for longitudinal and circular cutting
> cutting depth can be adjusted up to 5 0 mm
> replaceable blade (both sides can be used)
> tool body: plastic, fibreglass reinforced 16 40 150
Setting the tool for longitudinal cut Longitudinal cut Turning the tool for circumferential cut Circular cut
EAN Stripping capacities
Article No 003773 mm Ø mm g
16 40 150 026709 150 > 25 210
16 49 150 026716 Spare blade for 16 0 150
Adjustable cutting depth
