Page 78 - KNIPEX katalógus
P. 78
DISMANTLING TOOLS

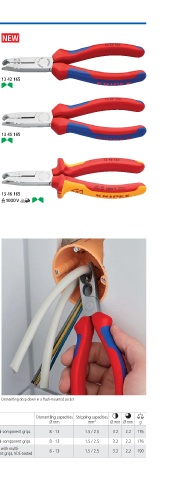

Dismantling Pliers
DIN ISO 5746 13 NEW
Multifunctional – cutting, dismantling and
stripping with one pair of pliers.
(QT VKOG UCXKPI FKUOCPVNKPI CPF UVTKRRKPI QH CNN
common round and damp-proof installation
cables (e.g. NYM cable) 13 42 165
Simplified access especially to deep mounted
flush sockets thanks to slim head design
and optimally angled cable sheath cutter
Strip cables easily and without damage thanks
to circular cutting edge with depth limit
> suitable for universal use: precision wire stripping holes for
conductors from 1 5 and 2 5 mm²
> with diagonal cutters for cutting and trimming conductors, 13 45 165
wires, small screws and nails
> all cutters additionally induction hardened to approx 61 HRC
for high wear resistance
> 30 % lighter than comparable pliers
> Vanadium steel, forged, multi stage oil hardened
13 46 165
Product video
Stripping holes for conductors of 1 5 mm² and 2 5 mm²
Cutting cable up to 13 mm diameter Cutting edges shortening of single wires Dismantling deep down in a flush mounted socket
EAN Dismantling capacities Stripping capacities
Article No 003773 mm Pliers Head Handles Ø mm mm 2 Ø mm Ø mm g
black
13 42 165 079675 165 polished with multi component grips 8 13 1 5 / 2 5 3 2 2 2 176
atramentized
13 45 165 079699 165 chrome plated with multi component grips 8 13 1 5 / 2 5 3 2 2 2 176
insulated with multi
13 46 165 079910 165 chrome plated 8 13 1 5 / 2 5 3 2 2 2 190
component grips, VDE tested
50
