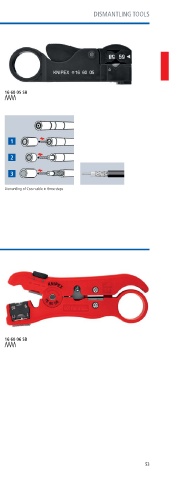

Page 84 - KNIPEX katalógus

DISMANTLING TOOLS

Stripping Tool 16
for coax cables 60

> for stripping coax cables (RG 58, RG 59 and RG 62)
> for stripping outer sheath, shield and insulation in a single process
> with three built in blades
> the cutting depth of each blade can be adjusted individually
by means of a hexagonal key (Allen key)
> the blade spacing remains constant
> housing: plastic, impact proof 16 60 05 SB

1

2

3

3 stripping steps in one operation Interior layers uncovered individually Dismantling of Coax cable in three steps

EAN
Article No 003773 mm Cable type g
16 60 05 SB 0 888 105 RG 58, RG 59 RG 62 73

Wire stripping tool 16
for coax and data cable 60

> universal stripping tool for Coax cables RG 59, RG 6, RG 7, RG 11
> for stripping outer sheath and interior insulation in a single process
> adjustable stripping blade for data cable
> two stripping blades for cutting and stripping telephone ribbon cable
( P/6P/8P) in a single operation
> integrated blade for cutting data cables
> housing: plastic, impact proof

16 60 06 SB

EAN
Article No 003773 mm Cable type g
16 60 06 SB 077961 125 RG 59, RG 6, RG 7, RG 11 100
53
