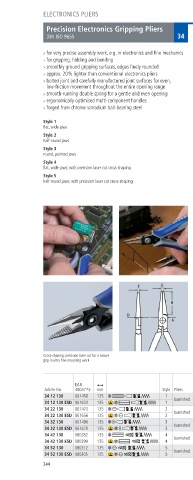

Page 465 - KNIPEX katalógus

ELECTRONICS PLIERS

Precision Electronics Gripping Pliers
DIN ISO 9655 34

> for very precise assembly work, e g in electronics and fine mechanics
> for gripping, holding and bending
> smoothly ground gripping surfaces, edges finely rounded
> approx 20 % lighter than conventional electronics pliers 34 12 130
> bolted joint and carefully manufactured joint surfaces for even,
low friction movement throughout the entire opening range
> smooth running double spring for a gentle and even opening
> ergonomically optimised multi component handles
> forged from chrome vanadium ball bearing steel

Style 1
flat, wide jaws
34 12 130 ESD
Style 2
half round jaws
Style 3
round, pointed jaws
Style 4
flat, wide jaws; with precision laser cut cross shaping
Style 5
half round jaws; with precision laser cut cross shaping

34 22 130 34 22 130 ESD

34 32 130 34 32 130 ESD

34 42 130 34 42 130 ESD

Cross shaping: precision laser cut for a secure
grip in ultra fine mounting work 34 52 130 34 52 130 ESD

Dimensions
EAN $ A D E F
Article No 003773 mm Style Pliers Head Handles mm mm mm mm mm g
34 12 130 061 58 135 1 21 9 11 2 6 5 1 3 5 61
34 12 130 ESD 061632 135 1 burnished polished with multi component grips 21 9 11 2 6 5 1 3 5 62
34 22 130 061 72 135 2 burnished polished with multi component grips 22 7 11 2 6 5 1 6 1 6 61
34 22 130 ESD 061656 135 2 22 7 11 2 6 5 1 6 1 6 65
34 32 130 061 96 135 3 23 7 11 2 6 5 2 0 1 0 59
burnished polished with multi component grips
34 32 130 ESD 061670 135 3 23 7 11 2 6 5 2 0 1 0 62
34 42 130 080282 135 21 9 11 2 6 5 1 3 5 61
34 42 130 ESD 080299 135 burnished polished with multi component grips 21 9 11 2 6 5 1 3 5 61
34 52 130 080312 135 5 burnished polished with multi component grips 22 7 11 2 6 5 1 6 1 6 61
34 52 130 ESD 080305 135 5 22 7 11 2 6 5 1 6 1 6 61
244
