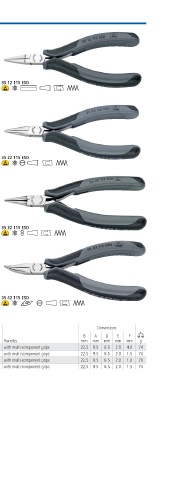

P. 470

ELECTRONICS PLIERS


 Electronics Pliers ESD
 DIN ISO 9655     35

   > precision pliers for fine assembly work,
 e g  in electronics and fine mechanics
   > for gripping, holding and bending
   > electrically discharging handles – dissipative
   > sturdy, zero backlash box joint
  35 12 115 ESD
   > smooth ground gripping surfaces

   > edges carefully deburred
   > low friction double spring for gentle and even opening
   > the mirror polish together with a fine film of oil offer effective
 rust protection – no circuit faults caused by peeling chrome
 from plated tools
   > with two colour dual component grips, black/grey
   > Special tool steel, forged, oil hardened



  35 22 115 ESD













  35 32 115 ESD


 ESD pliers (electrostatic discharge)
 Electrostatic energy is discharged through
 the handles in a gradual and controlled
 manner which protects components
 endangered by electrostatic discharge
 in accordance with applicable standards,
 e.g. IEC TR 61 340-5, DIN EN 61 340-5,
 SP Method 2472  35 42 115 ESD
             45°




                                   Dimensions
 EAN                          $   A   D   E   F
 Article No    003773   mm  Head  Handles  mm  mm  mm  mm  mm  g
 35 12 115 ESD  02 835   115                 mirror polished  with multi component grips  22 5 9 5  6 5  2 0     0  7
 35 22 115 ESD 02 8 2  115                  mirror polished   with multi component grips   22 5  9 5  6 5  2 0  1 5  7
 35 32 115 ESD  02 859   115                mirror polished  with multi component grips  22 5 9 5  6 5  2 0  1 0  70
 35 42 115 ESD 02 866  115      45°              mirror polished   with multi component grips   22 5  9 5  6 5  2 0  1 5  7
