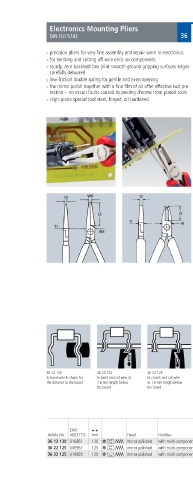

ELECTRONICS PLIERS

Electronics Mounting Pliers
DIN ISO 5743 36

> precision pliers for very fine assembly and repair work in electronics
> for bending and cutting off wire ends on components
> sturdy, zero backlash box joint smooth ground gripping surfaces edges
carefully deburred
> low friction double spring for gentle and even opening
> the mirror polish together with a fine film of oil offer effective rust pro 36 12 130
tection – no circuit faults caused by peeling chrome from plated tools
> High grade special tool steel, forged, oil hardened

36 22 125

36 32 125

36 12 130 36 22 125 36 32 125
to bend wire in shape for to bend and cut wire at to crunch and cut wire
the distance to the board 1 6 mm length below at 1 6 mm length below
the board the board

Cutting capacities Dimensions
EAN L3 W T1 W1 T2
Article No 003773 mm Head Handles Ø mm mm mm mm mm mm g
36 12 130 016861 130 mirror polished with multi component grips 23 0 12 0 9 5 5 5 6 0 9
36 22 125 0 6967 125 mirror polished with multi component grips 1 2 18 011 5 7 5 7 5 2 6 9
36 32 125 016885 125 mirror polished with multi component grips 1 0 18 0 11 5 7 5 7 5 0 108
247
