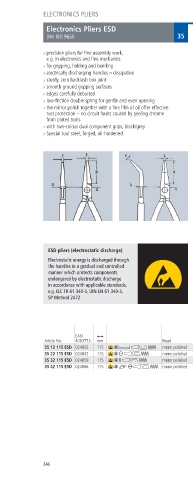

P. 469

ELECTRONICS PLIERS


                 Electronics Pliers ESD
                 DIN ISO 9655                                   35

                   > precision pliers for fine assembly work,
                 e g  in electronics and fine mechanics
                   > for gripping, holding and bending
                   > electrically discharging handles – dissipative
                   > sturdy, zero backlash box joint
                                                                      35 12 115 ESD
                   > smooth ground gripping surfaces

                   > edges carefully deburred
                   > low friction double spring for gentle and even opening
                   > the mirror polish together with a fine film of oil offer effective
                 rust protection – no circuit faults caused by peeling chrome
                 from plated tools
                   > with two colour dual component grips, black/grey
                   > Special tool steel, forged, oil hardened



                                                                      35 22 115 ESD













                                                                      35 32 115 ESD


                  ESD pliers (electrostatic discharge)
                  Electrostatic energy is discharged through
                  the handles in a gradual and controlled
                  manner which protects components
                  endangered by electrostatic discharge
                  in accordance with applicable standards,
                  e.g. IEC TR 61 340-5, DIN EN 61 340-5,
                  SP Method 2472                                      35 42 115 ESD
                                                                                 45°




                                                                                                       Dimensions
                            EAN                                                                   $   A   D   E   F
                 Article No    003773   mm                Head        Handles                     mm  mm  mm  mm  mm  g
                 35 12 115 ESD  02 835   115                 mirror polished  with multi component grips  22 5 9 5  6 5  2 0     0  7
                 35 22 115 ESD 02 8 2  115                  mirror polished   with multi component grips   22 5  9 5  6 5  2 0  1 5  7
                 35 32 115 ESD  02 859   115                mirror polished  with multi component grips  22 5 9 5  6 5  2 0  1 0  70
                 35 42 115 ESD 02 866  115      45°              mirror polished   with multi component grips   22 5  9 5  6 5  2 0  1 5  7



















                246
