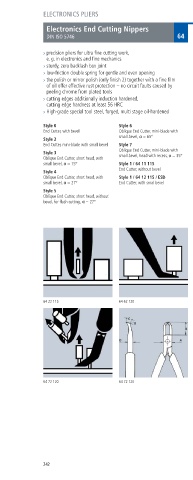

Page 461 - KNIPEX katalógus

ELECTRONICS PLIERS

Electronics End Cutting Nippers
DIN ISO 5746 64

> precision pliers for ultra fine cutting work,
e g in electronics and fine mechanics
> sturdy, zero backlash box joint
> low friction double spring for gentle and even opening
> the polish or mirror polish (only finish 2) together with a fine film
of oil offer effective rust protection – no circuit faults caused by 64 02 115
peeling chrome from plated tools 90°
> cutting edges additionally induction hardened,
cutting edge hardness at least 56 HRC
> High grade special tool steel, forged, multi stage oil hardened

Style 0 Style 6
End Cutter, with bevel Oblique End Cutter, mini blade with
small bevel, Į = 65°
Style 2
End Cutter, mini blade with small bevel Style 7
Oblique End Cutter, mini blade with
Style 3 small bevel, head with recess, Į = 35°
Oblique End Cutter, short head, with 64 12 115 ESD
small bevel, Į = 15° Style 1 / 64 11 115 90°
End Cutter, without bevel
Style 4
Oblique End Cutter, short head, with Style 1 / 64 12 115 / ESD
small bevel, Į = 27° End Cutter, with smal bevel
Style 5
Oblique End Cutter, short head, without
bevel, for flush cutting, Į = 27°

64 12 115 64 22 115
90° 90°

64 32 120 64 42 115
15° 27°
6 22 115 6 62 120

64 52 115 64 62 120
27° 65°

6 72 120 6 72 120

64 72 120
35°

242
