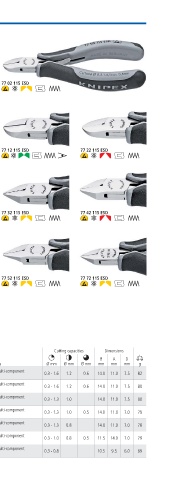

Page 458 - KNIPEX katalógus

ELECTRONICS PLIERS

Electronics Diagonal Cutters ESD
DIN ISO 9654 77

> for fine cutting work, e g in electronics and fine mechanics
> electrically discharging handles – dissipative
> sturdy, zero backlash box joint
> low friction double spring for gentle and even opening
> the mirror polish together with a fine film of oil offer effective 77 02 115 ESD
rust protection – no circuit faults caused by peeling chrome from
plated tools
> cutting edges additionally induction hardened,
cutting edge hardness approx 62 HRC
> with two colour dual component grips, black/grey
> High grade special tool steel, forged, multi stage oil hardened
77 02 115 ESD 77 42 115 ESD
round head, with small bevel pointed head, without bevel
77 12 115 ESD 77 52 115 ESD
round head, with bevel and lead catcher pointed, flat head, with small bevel 77 12 115 ESD 77 22 115 ESD
no uncontrolled loss of cut wire ends
77 72 115 ESD
77 22 115 ESD pointed mini head, with small bevel
round head, without bevel
77 32 115 ESD
pointed head, with small bevel

77 32 115 ESD 77 42 115 ESD

77 52 115 ESD 77 72 115 ESD

ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through
the handles in a gradual and controlled
manner which protects components
endangered by electrostatic discharge
in accordance with applicable standards,
e.g. IEC TR 61 340-5, DIN EN 61 340-5,
SP Method 2472

Cutting capacities Dimensions
EAN $ A D
Article No 003773 mm Head Handles Ø mm Ø mm Ø mm mm mm mm g
with multi component
77 02 115 ESD 025092 115 mirror polished 0 3 1 6 1 2 0 6 1 0 11 0 7 5 82
grips
with multi component
77 12 115 ESD 025108 115 mirror polished grips 0 3 1 6 1 2 0 6 1 0 11 0 7 5 80

with multi component
77 22 115 ESD 025115 115 mirror polished grips 0 3 1 3 1 0 1 0 11 0 7 5 80
with multi component
77 32 115 ESD 025122 115 mirror polished 0 3 1 3 1 0 0 5 1 0 11 0 7 0 79
grips
with multi component
77 42 115 ESD 031901 115 mirror polished grips 0 3 1 3 0 8 1 0 11 0 7 0 78
with multi component
77 52 115 ESD 025139 115 mirror polished grips 0 3 1 0 0 8 0 5 11 5 1 0 7 0 79
with multi component
77 72 115 ESD 02 330 115 mirror polished 0 3 0 8 10 5 9 5 6 0 69
grips
