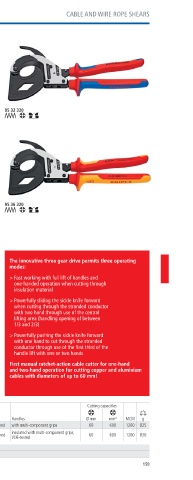

CABLE AND WIRE ROPE SHEARS

Cable Cutters 95
(ratchet principle, 3-stage) 3

Sturdy. Easy to use. Stable.
+PPQXCVKXG TCVEJGV FTKXG
For cable up to 60 mm diameter.

> easy handling due to low weight (825 g) and compact construction
(320 mm length) – also usable in confined areas
> cutting through copper and aluminium cables with diameters
of up to 60 mm in one hand and two hand operation
> hardened cutting edges, precisely ground, cut smoothly and
neatly without crushing 95 32 320
> for cutting copper and aluminium single conductors as well as
multiple stranded cables (not suitable for steel wire and wire ropes)
> innovative three stage ratchet drive with high leverage for
easy cutting in one hand and two hand operation
> fixed handle with support area for putting down the pliers
when cutting
> High grade special tool steel, forged, oil hardened

95 36 320

The innovative three gear drive permits three operating
modes:
> Fast working with full lift of handles and
one-handed operation when cutting through
insulation material
> Powerfully sliding the sickle knife forward
when cutting through the stranded conductor
with two hand through use of the central
lifting area (handling opening of between
1/3 and 2/3)
> Powerfully pushing the sickle knife forward
with one hand to cut through the stranded
conductor through use of the first third of the
handle lift with one or two hands
First manual ratchet-action cable cutter for one-hand
and two-hand operation for cutting copper and aluminium
cables with diameters of up to 60 mm!

Cutting capacities
EAN
Article No 003773 mm Tool Head Handles Ø mm mm² MCM g
95 32 320 075172 320 black atramentized polished with multi component grips 60 600 1200 825
95 36 320 075189 320 black atramentized polished insulated with multi component grips, 60 600 1200 830
VDE tested
95 39 320 01 07571 Pivot cutter repair kit for 95 32 320 and 95 36 320
95 39 320 02 075721 Fixed cutter repair kit for 95 32 320 and 95 36 320
159
