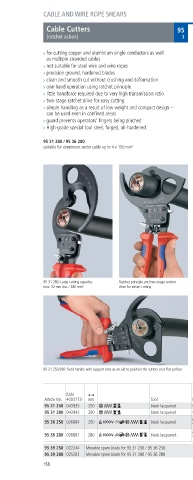

Page 293 - KNIPEX katalógus

CABLE AND WIRE ROPE SHEARS

Cable Cutters 95
(ratchet action) 3

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
> not suitable for steel wire and wire ropes
> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> one hand operation using ratchet principle
> little handforce required due to very high transmission ratio
> two stage ratchet drive for easy cutting 95 31 250
> simple handling as a result of low weight and compact design –
can be used even in confined areas
> guard prevents operators‘ fingers being pinched
> High grade special tool steel, forged, oil hardened

95 31 280 / 95 36 280
suitable for aluminium sector cable up to x 150 mm²

95 31 280

95 31 280: Large cutting capacity: Ratchet principle and two stage ratchet
max 52 mm dia / 380 mm² drive for easier cutting
95 36 250

Product video Product video
95 36 250 95 36 280

95 31 250/280: fixed handle with support area as an aid to position the cutters on a flat surface

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² MCM g
95 31 250 0 3935 250 black lacquered with multi component grips 32 2 0 500 676
95 31 280 0 39 2 280 black lacquered with multi component grips 52 380 750 860
insulated with multi component grips,
95 36 250 02688 250 black lacquered 32 2 0 500 652
VDE tested
insulated with multi component grips,
95 36 280 026891 280 black lacquered 52 380 750 835
VDE tested
95 39 250 0222 Movable spare blade for 95 31 250 / 95 36 250
95 39 280 025283 Movable spare blade for 95 31 280 / 95 36 280
158
