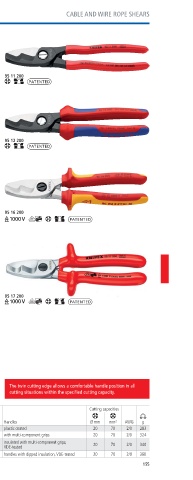

CABLE AND WIRE ROPE SHEARS

Cable Shears 95
with twin cutting edge 1

> for cutting copper and aluminium cables
> not suitable for steel wire and hard drawn copper conductors
> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
95 11 200
> by dividing the cutting actions into initial cut (insulating sheath in the
front cutting area) and final cut (conductor in the back cutting area),
cables up to Ø 20 mm can be cut in one hand operation
> less effort required due to favourable lever ratio and optimised cutting
edge geometry
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint, self retaining screw
> High grade special tool steel, forged, oil hardened

95 12 200

95 16 200

Initial cut: using the front cutting edge to cut the insulating sheath on larger cable diameters leaves
an ergonomic handle opening width

95 17 200

Final cut: after cutting the sheath in the front profile the conductors in the rear part are cut Initial
cut in the front profile, final cut in the rear profile – to keep it as easy as possible

The twin cutting edge allows a comfortable handle position in all
cutting situations within the specified cutting capacity.

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² AWG g
95 11 200 0 3928 200 burnished plastic coated 20 70 2/0 283
95 12 200 0 783 200 burnished with multi component grips 20 70 2/0 32
insulated with multi component grips,
95 16 200 026761 200 chrome plated VDE tested 20 70 2/0 3 0
95 17 200 026952 200 chrome plated handles with dipped insulation, VDE tested 20 70 2/0 360
155
