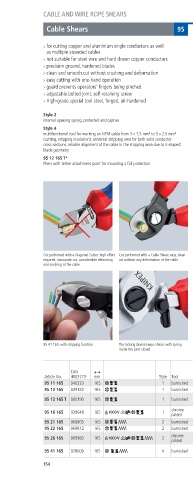

CABLE AND WIRE ROPE SHEARS

Cable Shears 95

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
> not suitable for steel wire and hard drawn copper conductors
> precision ground, hardened blades 95 11 165
> clean and smooth cut without crushing and deformation
> easy cutting with one hand operation
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint, self retaining screw
> High grade special tool steel, forged, oil hardened

Style 2 95 12 165
internal opening spring, protected and captive

Style 4
multifunctional tool for working on NYM cable from 3 x 1 5 mm² to 5 x 2 5 mm²
(cutting, stripping insulation); universal stripping area for both solid conductor
cross sections; reliable alignment of the cable in the stripping area due to V shaped
blade geometry
95 12 165 T*
Pliers with tether attachment point for mounting a fall protection

95 12 165 T

95 16 165

Cut performed with a Diagonal Cutter: high effort Cut performed with a Cable Shear: easy, clean
required, inaccurate cut, considerable deforming cut without any deformation of the cable
and crushing of the cable

95 22 165

95 1 165: with stripping function The locking device keeps shears with spring 95 41 165
inside the joint closed

Cutting capacities
EAN
Article No 003773 mm Style Tool Handles Ø mm mm² AWG g
95 11 165 0 0323 165 1 burnished plastic coated 15 50 1/0 215
95 12 165 029182 165 1 burnished with multi component grips 15 50 1/0 250
with multi component grips and
95 12 165 T 080190 165 1 burnished integrated tether attachment point 15 50 1/0 25
chrome insulated with multi component grips,
95 16 165 0396 8 165 1 15 50 1/0 262
plated VDE tested
95 21 165 069805 165 2 burnished plastic coated 15 50 1/0 215
95 22 165 069812 165 2 burnished with multi component grips 15 50 1/0 25
chrome insulated with multi component grips,
95 26 165 069980 165 2 plated VDE tested 15 50 1/0 275
95 41 165 078609 165 burnished plastic coated 12 35 1/0 220

154 * Other tools with tethering can be found from page 25 ff
