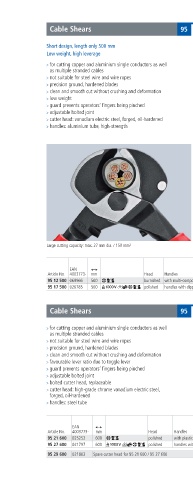

Page 291 - KNIPEX katalógus

CABLE AND WIRE ROPE SHEARS

Cable Shears 95

Short design, length only 500 mm
.QY YGKIJV JKIJ NGXGTCIG

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
95 12 500
> not suitable for steel wire and wire ropes

> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> low weight
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint
> cutter head: vanadium electric steel, forged, oil hardened
> handles: aluminium tube, high strength

95 17 500

Large cutting capacity: max 27 mm dia / 150 mm²

Cutting capacities
EAN
Article No 003773 mm Head Handles Ø mm mm² AWG g
95 12 500 069966 500 burnished with multi component grips 27 150 5/0 1090
95 17 500 026785 500 polished handles with dipped insulation, VDE tested 27 150 5/0 1 77

Cable Shears 95

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
> not suitable for steel wire and wire ropes
> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> favourable lever ratio due to toggle lever 95 21 600
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint
> bolted cutter head, replaceable
> cutter head: high grade chrome vanadium electric steel,
forged, oil hardened
> handles: steel tube

Cutting capacities
EAN
Article No 003773 mm Head Handles Ø mm mm² AWG g
95 21 600 025252 600 polished with plastic grips 27 150 5/0 1836
95 27 600 021797 600 polished handles with dipped insulation, VDE tested 27 150 5/0 2301
95 29 600 021803 Spare cutter head for 95 21 600 / 95 27 600
157
