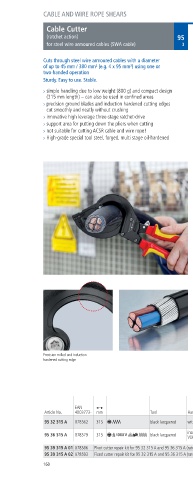

Page 297 - KNIPEX katalógus

CABLE AND WIRE ROPE SHEARS

Cable Cutter
(ratchet action) 95
for steel wire armoured cables (SWA cable) 3

Cuts through steel wire armoured cables with a diameter
of up to 45 mm / 380 mm² (e.g. 4 x 95 mm²) using one or
two-handed operation
Sturdy. Easy to use. Stable.
> simple handling due to low weight (800 g) and compact design
(315 mm length) – can also be used in confined areas 95 32 315 A
> precision ground blades and induction hardened cutting edges
cut smoothly and neatly without crushing
> innovative high leverage three stage ratchet drive
> support area for putting down the pliers when cutting
> not suitable for cutting ACSR cable and wire rope!
> High grade special tool steel, forged, multi stage oil hardened

95 36 315 A

Precision milled and induction
Product video
hardened cutting edge

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² MCM g
95 32 315 A 078562 315 black lacquered with multi component grips 5 380 750 800
insulated with multi component grips,
95 36 315 A 078579 315 black lacquered VDE tested 5 380 750 800

95 39 315 A 01 078586 Pivot cutter repair kit for 95 32 315 A and 95 36 315 A (ratchet action)
95 39 315 A 02 078593 Fixed cutter repair kit for 95 32 315 A and 95 36 315 A (ratchet action)
160
