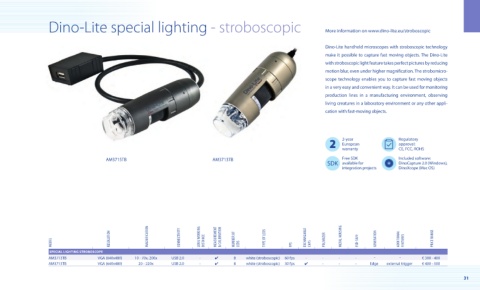

Dino-Lite special lighting - stroboscopic More information on www.dino-lite.eu/stroboscopic
Dino-Lite handheld microscopes with stroboscopic technology
make it possible to capture fast moving objects. The Dino-Lite
with stroboscopic light feature takes perfect pictures by reducing
motion blur, even under higher magnifi cation. The strobomicro-
scope technology enables you to capture fast moving objects
in a very easy and convenient way. It can be used for monitoring
production lines in a manufacturing environment, observing
living creatures in a laboratory environment or any other appli-
cation with fast-moving objects.
2 2-year Regulatory
approval:
European
warranty CE, FCC, ROHS
AM3715TB AM3713TB Free SDK Included software:
available for DinoCapture 2.0 (Windows),
integration projects DinoXcope (Mac OS)
Wireless streaming
in combination
with WF-10 unit
MODE L RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS TYPE OF LEDS FPS EXCHANGABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION ADDITIONAL FEATURES PRICE RANGE
SPECIAL LIGHTING STROBOSCOPE
AM3713TB VGA (640x480) 10 - 70x, 200x USB 2.0 - ✔ 8 white (stroboscopic) 60 fps - - - - - - € 300 - 400
AM3715TB VGA (640x480) 20 - 220x USB 2.0 - ✔ 8 white (stroboscopic) 30 fps ✔ - - - Edge external trigger € 400 - 500
