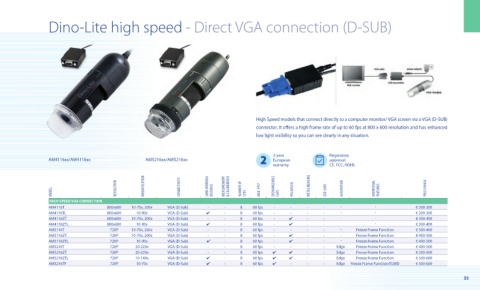

Dino-Lite high speed - Direct VGA connection (D-SUB)

High Speed models that connect directly to a computer monitor/ VGA screen via a VGA (D-SUB)
connector. It off ers a high frame rate of up to 60 fps at 800 x 600 resolution and has enhanced
low light visibility so you can see clearly in any situation.

2 2-year Regulatory
AM4116xx/AM4116xx AM5216xx/AM5216xx European approval:

CE, FCC, ROHS
warranty
MODEL RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS MAX. FPS* EXCHANGEABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION ADDITIONAL FEATURES PRICE RANGE

HIGH SPEED VGA CONNECTION
AM4116T 800x600 10-70x, 200x VGA (D-Sub) - - 8 60 fps - - - - - - € 200-300
AM4116TL 800x600 10-90z VGA (D-Sub) ✔ - 8 60 fps - - - - - - € 200-300
AM4116ZT 800x600 10-70x, 200x VGA (D-Sub) - - 8 60 fps - ✔ - - - - € 300-400
AM4116ZTL 800x600 10-90x VGA (D-Sub) ✔ - 8 60 fps - ✔ - - - € 300-400
AM5116T 720P 10-70x, 200x VGA (D-Sub) - - 8 60 fps - - - - - Freeze Frame Function € 300-400
AM5116ZT 720P 10-70x, 200x VGA (D-Sub) - - 8 60 fps - ✔ - - - Freeze Frame Function € 400-500
AM5116ZTL 720P 10-90x VGA (D-Sub) ✔ - 8 60 fps - ✔ - - - Freeze Frame Function € 400-500
AM5216T 720P 20-220x VGA (D-Sub) - - 8 60 fps - - - - Edge Freeze Frame Function € 400-500
AM5216ZT 720P 20-220x VGA (D-Sub) - - 8 60 fps ✔ ✔ - - Edge Freeze Frame Function € 500-600
AM5216ZTL 720P 10-140x VGA (D-Sub) ✔ - 8 60 fps ✔ ✔ - - Edge Freeze Frame Function € 500-600
AM5216TF 720P 10-70x VGA (D-Sub) ✔ - 8 60 fps ✔ - - - Edge Freeze Frame Function/ELWD € 500-600
