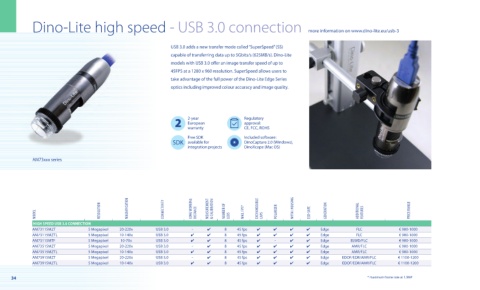

Dino-Lite high speed - USB 3.0 connection more information on www.dino-lite.eu/usb-3

USB 3.0 adds a new transfer mode called “SuperSpeed” (SS)
capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite
models with USB 3.0 off er an image transfer speed of up to
45FPS at a 1280 x 960 resolution. SuperSpeed allows users to
take advantage of the full power of the Dino-Lite Edge Series
optics including improved colour accuracy and image quality.

2 2-year Regulatory
European
approval:

warranty CE, FCC, ROHS
Free SDK Included software:
available for DinoCapture 2.0 (Windows),

integration projects DinoXcope (Mac OS)
Wireless streaming
AM73xxx series in combination
with WF-10 unit

MODEL RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS MAX. FPS* EXCHANGEABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION ADDITIONAL FEATURES PRICE RANGE

HIGH SPEED USB 3.0 CONNECTION
AM73115MZT 5 Megapixel 20-220x USB 3.0 - ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge FLC € 900-1000
AM73115MZTL 5 Megapixel 10-140x USB 3.0 ✔ ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge FLC € 900-1000
AM73115MTF 5 Megapixel 10-70x USB 3.0 ✔ ✔ 8 45 fps ✔ - ✔ ✔ Edge ELWD/FLC € 900-1000
AM73515MZT 5 Megapixel 20-220x USB 3.0 - ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge AMR/FLC € 900-1000
AM73515MZTL 5 Megapixel 10-140x USB 3.0 ✔ ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge AMR/FLC € 900-1000
AM73915MZT 5 Megapixel 20-220x USB 3.0 - ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge EDOF/EDR/AMR/FLC € 1100-1200
AM73915MZTL 5 Megapixel 10-140x USB 3.0 ✔ ✔ 8 45 fps ✔ ✔ ✔ ✔ Edge EDOF/EDR/AMR/FLC € 1100-1200

34 * maximum frame rate at 1.3MP
