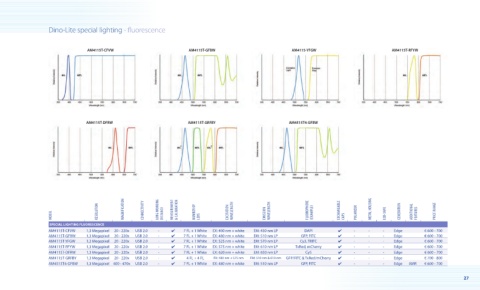

Page 27 - DINO-LITE általános katalógus
P. 27
Dino-Lite special lighting - fl uorescence
AM4115T-CFVW AM4115T-GFBW AM4115-YFGW AM4115T-RFYW
AM4115T-DFRW AM4115T-GRFBY AM4515T4-GFBW
MODE L RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS EXCITATION WAVELENGTH EMISSION WAVELENGTH FLUOROPHORE EXAMPLE EXCHANGABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION ADDITIONAL FEATURES PRICE RANGE
SPECIAL LIGHTING FLUORESCENCE
AM4115T-CFVW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 7 FL + 1 White EX: 400 nm + white EM: 430 nm LP DAPI ✔ - - - Edge € 600 - 700
AM4115T-GFBW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 7 FL + 1 White EX: 480 nm + white EM: 510 nm LP GFP, FITC ✔ - - - Edge € 600 - 700
AM4115T-YFGW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 7 FL + 1 White EX: 525 nm + white EM: 570 nm LP Cy3, TRITC ✔ - - - Edge € 600 - 700
AM4115T-RFYW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 7 FL + 1 White EX: 575 nm + white EM: 610 nm LP TxRed, mCherry ✔ - - - Edge € 600 - 700
AM4115T-DFRW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 7 FL + 1 White EX: 620 nm + white EM: 650 nm LP Cy5 ✔ - - - Edge € 600 - 700
AM4115T-GRFBY 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 4 FL + 4 FL EX: 480 nm + 575 nm EM: 510 nm & 610 nm GFP/FITC & TxRed/mCherry ✔ - - - Edge € 700 - 800
AM4515T4-GFBW 1,3 Megapixel 400 - 470x USB 2.0 - ✔ 7 FL + 1 White EX: 480 nm + white EM: 510 nm LP GFP, FITC ✔ - - - Edge AMR € 600 - 700
27
