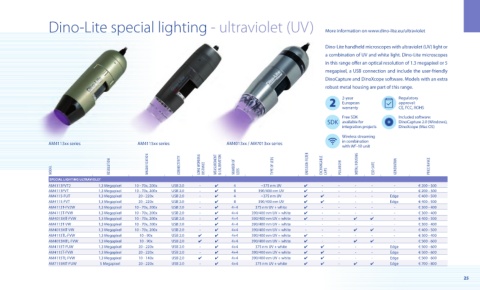

Dino-Lite special lighting - ultraviolet (UV)                                                    More information on www.dino-lite.eu/ultraviolet




                                                                                                                   Dino-Lite handheld microscopes with ultraviolet (UV) light or
                                                                                                                   a combination of UV and white light. Dino-Lite microscopes
                                                                                                                   in this range off er an optical resolution of 1.3 megapixel or 5
                                                                                                                   megapixel, a USB connection and include the user-friendly
                                                                                                                   DinoCapture and DinoXcope software. Models with an extra
                                                                                                                   robust metal housing are part of this range.

                                                                                                                     2   2-year              Regulatory
                                                                                                                         European
                                                                                                                                             approval:


                                                                                                                         warranty            CE, FCC, ROHS
                                                                                                                         Free SDK            Included software:
                                                                                                                         available for       DinoCapture 2.0 (Windows),


                                                                                                                         integration projects  DinoXcope (Mac OS)
                                                                                                                         Wireless streaming
                                                                                                                         in combination
                  AM4113xx series                AM4115xx series                AM4013xx / AM7013xx series
                                                                                                                         with WF-10 unit
                   MODE L              RESOLUTION    MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT  & CALIBRATION  NUMBER OF   LEDS  TYPE OF LEDS  EMISSION FILTER  EXCHANGABLE   CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  PRICE RANGE

                  SPECIAL LIGHTING ULTRAVIOLET
                  AM4113FVT2        1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔   4         ~375 nm UV     ✔     -     -     -    -        -       € 200 - 300
                  AM4113FVT         1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔   8        390/400 nm UV   ✔     -     -     -    -        -       € 200 - 300
                  AM4115-FUT        1,3 Megapixel  20 - 220x  USB 2.0  -    ✔      4         ~375 nm UV     ✔     ✔     -     -    -      Edge      € 400 - 500
                  AM4115-FVT        1,3 Megapixel  20 - 220x  USB 2.0  -    ✔      8        390/400 nm UV   ✔     ✔     -     -    -      Edge      € 400 - 500
                  AM4113T-FV2W      1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔  4+4      375 nm UV + white  ✔   -     -     -    -        -       € 300 - 400
                  AM4113T-FVW       1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔  4+4    390/400 nm UV + white  ✔  -    -     -    -        -       € 300 - 400
                  AM4013MT-FVW      1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔  4+4    390/400 nm UV + white  ✔  -    -    ✔     ✔        -       € 400 - 500
                  AM4113T-VW        1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔  4+4    390/400 nm UV + white  -  -    -     -    -        -       € 300 - 400
                  AM4013MT-VW       1,3 Megapixel  10 - 70x, 200x  USB 2.0  -  ✔  4+4    390/400 nm UV + white  -  -    -    ✔     ✔       -        € 400 - 500
                  AM4113TL-FVW      1,3 Megapixel  10 - 90x  USB 2.0   ✔    ✔     4+4    390/400 nm UV + white  ✔  -    -     -    -       -        € 300 - 400
                  AM4013MTL-FVW     1,3 Megapixel  10 - 90x  USB 2.0   ✔    ✔     4+4    390/400 nm UV + white  ✔  -    -    ✔     ✔       -        € 500 - 600
                  AM4115T-FUW       1,3 Megapixel  20 - 220x  USB 2.0  -    ✔     4+4      375 nm UV + white  ✔   ✔     -     -    -      Edge      € 500 - 600
                  AM4115T-FVW       1,3 Megapixel  20 - 220x  USB 2.0  -    ✔     4+4    390/400 nm UV + white  ✔  ✔    -     -    -      Edge      € 500 - 600
                  AM4115TL-FVW      1,3 Megapixel  10 - 140x  USB 2.0  ✔    ✔     4+4    390/400 nm UV + white  ✔  ✔    -     -    -      Edge      € 500 - 600
                  AM7115MT-FUW      5 Megapixel   20 - 220x  USB 2.0   -    ✔     4+4      375 nm UV + white  ✔   ✔     -    ✔     ✔      Edge      € 700 - 800
