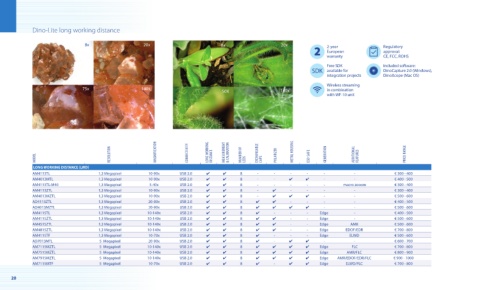

Page 20 - DINO-LITE általános katalógus
P. 20

Dino-Lite long working distance

                               8x                  20x                         8x                   20x             2-year              Regulatory
                                                                                                               2    European            approval:


                                                                                                                    warranty            CE, FCC, ROHS
                                                                                                                    Free SDK            Included software:
                                                                                                                    available for       DinoCapture 2.0 (Windows),


                                                                                                                    integration projects  DinoXcope (Mac OS)
                                                                                                                    Wireless streaming
                              75x                  140x                                                             in combination
                                                                               50X                 140x
                                                                                                                    with WF-10 unit










             MODE L                     RESOLUTION      MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT  & CALIBRATION  NUMBER OF   LEDS  EXCHANGABLE   CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE
             LONG WORKING DISTANCE  LWD
            AM4113TL                1,3 Megapixel    10-90x     USB 2.0  ✔     ✔     8     -     -     -     -     -          -            € 300 - 400
            AM4013MTL               1,3 Megapixel    10-90x     USB 2.0  ✔     ✔     8     -     -    ✔     ✔      -          -            € 400 - 500
            AM4113TL-M40            1,3 Megapixel    5-40x      USB 2.0  ✔     ✔     8     -     -     -     -     -      macro zooom      € 300 - 400
            AM4113ZTL               1,3 Megapixel    10-90x     USB 2.0  ✔     ✔     8     -     ✔     -     -     -          -            € 300 - 400
            AM4013MZTL              1,3 Megapixel    10-90x     USB 2.0  ✔     ✔     8     -     ✔    ✔     ✔      -          -            € 500 - 600
            AD4113ZTL               1,3 Megapixel    20-90x     USB 2.0  ✔     ✔     8     ✔     ✔     -     -     -          -            € 400 - 500
            AD4013MZTL              1,3 Megapixel    20-90x     USB 2.0  ✔     ✔     8     ✔     ✔    ✔     ✔      -          -            € 500 - 600
            AM4115TL                1,3 Megapixel    10-140x    USB 2.0  ✔     ✔     8     ✔     -     -     -   Edge         -            € 400 - 500
            AM4115ZTL               1,3 Megapixel    10-140x    USB 2.0  ✔     ✔     8     ✔     ✔     -     -   Edge         -            € 500 - 600
            AM4515ZTL               1,3 Megapixel    10-140x    USB 2.0  ✔     ✔     8     ✔     ✔     -     -   Edge       AMR            € 500 - 600
            AM4815ZTL               1,3 Megapixel    10-140x    USB 2.0  ✔     ✔     8     ✔     ✔     -     -   Edge     EDOF/EDR         € 700 - 800
            AM4115TF                1,3 Megapixel    10-70x     USB 2.0  ✔     ✔     8     ✔     -     -     -   Edge       ELWD           € 500 - 600
            AD7013MTL               5  Megapixel     20-90x     USB 2.0  ✔     ✔     8     ✔     -    ✔     ✔      -          -            € 600 - 700
            AM7115MZTL              5  Megapixel     10-140x    USB 2.0  ✔     ✔     8     ✔     ✔    ✔     ✔    Edge        FLC           € 700 - 800
            AM7515MZTL              5  Megapixel     10-140x    USB 2.0  ✔     ✔     8     ✔     ✔    ✔     ✔    Edge      AMR/FLC         € 800 - 900
            AM7915MZTL              5  Megapixel     10-140x    USB 2.0  ✔     ✔     8     ✔     ✔    ✔     ✔    Edge  AMR/EDOF/EDR/FLC    € 900 - 1000
            AM7115MTF               5  Megapixel     10-70x     USB 2.0  ✔     ✔     8     ✔     -    ✔     ✔    Edge     ELWD/FLC         € 700 - 800

     20
   15   16   17   18   19   20   21   22   23   24   25
