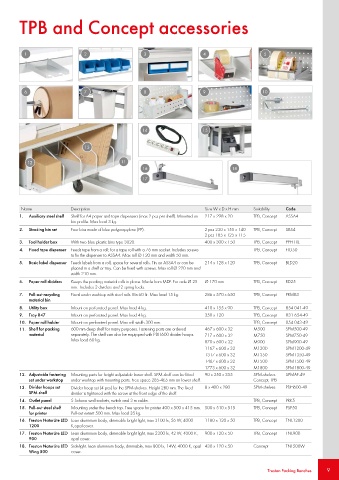

Page 9 - Treston

TPB and Concept accessories

1 2 3 4 5

6 7 8 9 10

14 15

13

12 11
16 18

17

Name Description Size W x D x H mm Suitability Code
1. Auxiliary steel shelf Shelf for A4 paper and tape dispensers (max 2 pcs per shelf). Mounted on 217 x 298 x 20 TPB, Concept ASSA4
bin profile. Max load 3 kg.
2. Stacking bin set Four bins made of blue polypropylene (PP). 2 pcs 230 x 155 x 140 TPB, Concept SBS4
2 pcs 185 x 125 x 115
3. Tool holder box With two blue plastic bins type 3020. 400 x 300 x 150 TPB, Concept PPH TXL
4. Fixed tape dispenser Feeds tape from a roll; for a tape roll with a 76-mm socket. Includes screws TPB, Concept FTD50
to fix the dispenser to ASSA4. Max roll Ø 120 mm and width 50 mm.
5. Basic label dispenser Feeds labels from a roll, space for several rolls. Fits on ASSA4 or can be 214 x 128 x 120 TPB, Concept BLD20
placed in a shelf or tray. Can be fixed with screws. Max roll Ø 220 mm and
width 210 mm.
6. Paper roll dividers Keeps the packing material rolls in place. Made from MDF. For axle Ø 25 Ø 170 mm TPB, Concept RD25
mm. Includes 2 dividers and 2 spring locks.
7. Pull-out recycling Fixed under worktop with steel rails. Bin 60 ltr. Max load 15 kg. 286 x 570 x 650 TPB, Concept PRMB3
material bin
8. Utility box Mount on perforated panel. Max load 4 kg. 410 x 155 x 90 TPB, Concept 854 041-49
9. Tray R47 Mount on perforated panel. Max load 4 kg. 350 x 120 TPB, Concept 831 654-49
10. Paper roll holder Mount on perforated panel. Max roll width 300 mm. TPB, Concept 854 043-49
11. Shelf for packing 600 mm deep shelf for many purposes. Fastening parts are ordered 467 x 600 x 32 M500 SPM500-49
material separately. The shelf can also be equipped with PDH600 divider hoops. 717 x 600 x 32 M750 SPM750-49
Max load 60 kg. 870 x 600 x 32 M900 SPM900-49
1167 x 600 x 32 M1200 SPM1200-49
1317 x 600 x 32 M1350 SPM1350-49
1467 x 600 x 32 M1500 SPM1500-49
1773 x 600 x 32 M1800 SPM1800-49
12. Adjustable fastening Mounting parts for height adjustable lower shelf. SPM-shelf can be fitted 90 x 350 x 355 SPM-shelves SPMAF-49
set under workstop under worktop with mounting parts. Free space 285-465 mm on lower shelf. Concept, TPB
13. Divider hoops set Divider hoop set (4 pcs) for the SPM-shelves. Height 280 mm. The fixed 8 x 400 x 280 SPM-shelves PDH600-49
SPM-shelf divider is tightened with the screw at the front edge of the shelf.
14. Outlet panel 5 Schuco wall sockets, switch and 3 m cable. TPB, Concept PRK5
15. Pull-out steel shelf Mounting under the bench top. Free space for printer 400 x 500 x 415 mm. 500 x 510 x 515 TPB, Concept PSP50
for printer Pull-out extent 500 mm. Max load 35 kg.
16. Treston NaturLite LED Lean aluminium body, dimmable bright light, max 3100 lx, 56 W, 4000 1180 x 120 x 50 TPB, Concept TNL1200
1200 K,opal cover.
17. Treston NaturLite LED Lean aluminium body, dimmable bright light, max 2300 lx, 42 W, 4000 K, 900 x 120 x 50 TPB, Concept TNL900
900 opal cover.
18. Treston NaturLite LED Sidelight. Lean aluminium body, dimmable, max 800 lx, 14W, 4000 K, opal 430 x 120 x 50 Concept TNL500W
Wing 500 cover.

Treston Packing Benches 9
