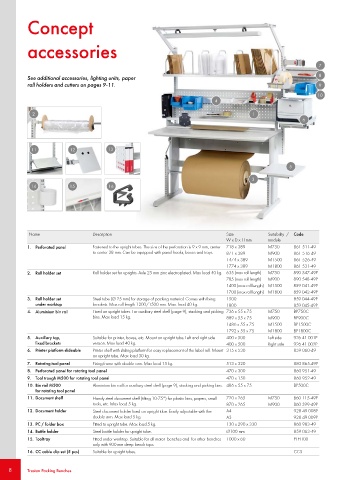

Concept

accessories

7
See additional accessories, lighting units, paper 8
roll holders and cutters on pages 9-11. 9
10
4
2 1
6

11 12 13

5

3
14 15 16

Name Description Size Suitability / Code
W x D x H mm module
1. Perforated panel Fastened to the upright tubes. The size of the perforation is 9 x 9 mm, center 718 x 389 M750 861 511-49
to center 38 mm. Can be equipped with panel hooks, boxes and trays. 871 x 389 M900 861 516-49
1474 x 389 M1500 861 526-49
1774 x 389 M1800 861 531-49
2. Roll holder set Roll holder set for uprights. Axle 25 mm zinc electroplated. Max load 40 kg. 635 (max roll length) M750 890 547-49P
785 (max roll length) M900 890 548-49P
1400 (max roll length) M1500 859 041-49P
1700 (max roll length) M1800 859 042-49P
3. Roll holder set Steel tube (Ø 25 mm) for storage of packing material. Comes with fixing 1500 859 044-49P
under worktop brackets. Max roll length 1200/1500 mm. Max. load 40 kg. 1800 859 045-49P
4. Aluminium bin rail Fixed on upright tubes. For auxiliary steel shelf (page 9), stacking and picking 736 x 55 x 75 M750 BP750C
bins. Max load 15 kg. 889 x 55 x 75 M900 BP900C
1486 x 55 x 75 M1500 BP1500C
1792 x 55 x 75 M1800 BP1800C
5. Auxiliary top, Suitable for printer, boxes, etc. Mount on upright tube. Left and right side 400 x 500 Left side 926 41 001P
fixed brackets version. Max load 40 kg. 400 x 500 Right side 926 41 002P
6. Printer platform slideable Printer shelf with sliding platform for easy replacement of the label roll. Mount 315 x 530 859 060-49
on upright tube. Max load 30 kg.
7. Rotating tool panel Fixing frame with double arm. Max load 15 kg. 513 x 320 880 865-49P
8. Perforated panel for rotating tool panel 470 x 300 860 951-49
9. Tool trough M500 for rotating tool panel 470 x 150 860 952-49
10. Bin rail M500 Aluminium bin rail for auxiliary steel shelf (page 9), stacking and picking bins. 486 x 55 x 75 BP500C
for rotating tool panel
11. Document shelf Handy steel document shelf (tilting 10-75°) for plastic bins, papers, small 720 x 265 M750 860 115-49P
tools, etc. Max load 5 kg. 870 x 265 M900 860 399-49P
12. Document holder Steel document holder fixed on upright tube. Easily adjustable with the A4 928 49 008P
double arm. Max load 5 kg. A3 928 49 009P
13. PC / folder box Fitted to upright tube. Max load 5 kg. 130 x 290 x 330 860 983-49
14. Bottle holder Steel bottle holder for upright tube. Ø100 mm 859 063-49
15. Tooltray Fitted under worktop. Suitable for all motor benches and for other benches 1000 x 60 PTH100
only with 900 mm deep bench tops.
16. CC cable clip set (5 pcs) Suitable for upright tubes. CC5

8 Treston Packing Benches
