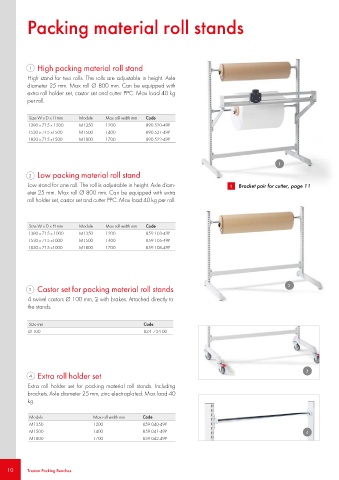

Packing material roll stands

High packing material roll stand
1
High stand for two rolls. The rolls are adjustable in height. Axle
diameter 25 mm. Max roll Ø 800 mm. Can be equipped with
extra roll holder set, castor set and cutter PPC. Max load 40 kg
per roll.

Size W x D x H mm Module Max roll width mm Code
1380 x 715 x 1500 M1350 1200 890 520-49P
1530 x 715 x1500 M1500 1400 890 521-49P
1830 x 715 x1500 M1800 1700 890 522-49P

1
Low packing material roll stand
2
Low stand for one roll. The roll is adjustable in height. Axle diam- ! Bracket pair for cutter, page 11
eter 25 mm. Max roll Ø 800 mm. Can be equipped with extra
roll holder set, castor set and cutter PPC. Max load 40 kg per roll.

Size W x D x H mm Module Max roll width mm Code
1380 x 715 x 1000 M1350 1200 859 103-49P
1530 x 715 x1000 M1500 1400 859 105-49P
1830 x 715 x1000 M1800 1700 859 108-49P

Castor set for packing material roll stands 2
3
4 swivel castors Ø 100 mm, 2 with brakes. Attached directly to
the stands.

Size mm Code
Ø 100 834 734-00

3
Extra roll holder set
4
Extra roll holder set for packing material roll stands. Including
brackets. Axle diameter 25 mm, zinc electroplated. Max load 40
kg.

Module Max roll width mm Code
M1350 1200 859 040-49P
M1500 1400 859 041-49P 4
M1800 1700 859 042-49P

10 Treston Packing Benches
