Page 5 - Treston

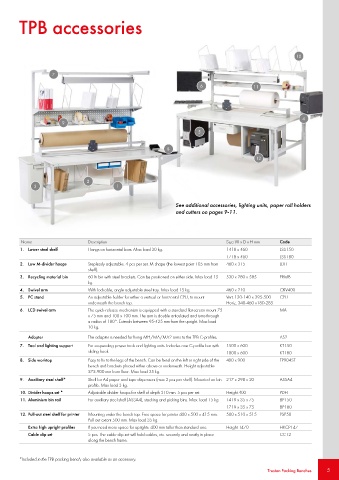

TPB accessories

10

7
6 11

4
9
5

8
12

2
3 1

See additional accessories, lighting units, paper roll holders
and cutters on pages 9-11.

Name Description Size W x D x H mm Code
1. Lower steel shelf Hangs on horizontal bars. Max load 30 kg. 1418 x 460 LSS150
1718 x 460 LSS180
2. Low M-divider hoops Steplessly adjustable. 4 pcs per set. M-shape (the lowest point 105 mm from 460 x 315 LDH
shelf).
3. Recycling material bin 60 ltr bin with steel brackets. Can be positioned on either side. Max load 15 530 x 280 x 585 PRMB
kg.
4. Swivel arm With lockable, angle adjustable steel tray. Max load 15 kg. 460 x 210 CKV400
5. PC stand An adjustable holder for either a vertical or horizontal CPU, to mount Vert. 130-140 x 395-500 CPU
underneath the bench top. Horiz. 340-460 x180-285
6. LCD swivel arm The quick-release mechanism is equipped with a standard flat-screen mount 75 MA
x 75 mm and 100 x 100 mm. The arm is double articulated and turns through
a radius of 180°. Extends between 95-425 mm from the upright. Max load
10 kg.
Adapter The adapter is needed for fixing MH/MA/MA2 arms to the TPB C-profiles. AS2
7. Tool and lighting support For suspending power tools and lighting units. Includes one C-profile bar with 1500 x 600 KT150
sliding hook. 1800 x 600 KT180
8. Side worktop Easy to fix to the legs of the bench. Can be fixed on the left or right side of the 400 x 900 TP904ST
bench and brackets placed either above or underneath. Height adjustable
575-900 mm from floor. Max load 35 kg.
9. Auxiliary steel shelf* Shelf for A4 paper and tape dispensers (max 2 pcs per shelf). Mounted on bin 217 x 298 x 20 ASSA4
profile. Max load 3 kg.
10. Divider hoops set * Adjustable divider hoops for shelf of depth 310 mm. 5 pcs per set. Height 400 PDH
11. Aluminium bin rail For auxiliary steel shelf (ASSA4), stacking and picking bins. Max. load 15 kg 1419 x 35 x 75 BP150
1719 x 35 x 75 BP180
12. Pull-out steel shelf for printer Mounting under the bench top. Free space for printer 400 x 500 x 415 mm. 500 x 510 x 515 PSP50
Pull-out extent 500 mm. Max load 35 kg.
Extra high upright profiles If you need more space for uprights. 400 mm taller than standard one. Height 1470 HKCP147
Cable clip set 5 pcs. The cable clip set will hold cables, etc. securely and neatly in place CC12
along the bench frame.

*Included in the TPB packing bench; also available as an accessory.
Treston Packing Benches 5
