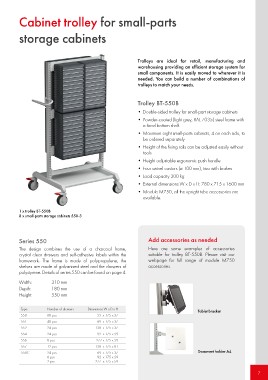

Cabinet trolley for small-parts
storage cabinets

Trolleys are ideal for retail, manufacturing and
warehousing providing an efficient storage system for
small components. It is easily moved to wherever it is
needed. You can build a number of combinations of
trolleys to match your needs.

Trolley BT-550B

• Double-sided trolley for small-part storage cabinets
• Powder-coated (light grey, RAL 7035) steel frame with

a fixed bottom shelf.
• Maximum eight small-parts cabinets, 4 on each side, to

be ordered separately
• Height of the fixing rails can be adjusted easily without

tools
• Height adjustable ergonomic push handle
• Four swivel castors (ø 100 mm), two with brakes
• Load capacity 300 kg
• External dimensions W x D x H: 780 x 715 x 1600 mm
• Module M750, all the upright tube accessories are

available.

1 x trolley BT-550B
8 x small-parts storage cabinets 550-3

Series 550 Add accessories as needed

The design combines the use of a charcoal frame, Here are some examples of accessories
crystal clear drawers and self-adhesive labels within the suitable for trolley BT-550B. Please visit our
framework. The frame is made of polypropylene, the webpage for full range of module M750
shelves are made of galvanised steel and the drawers of accessories.
polystyrene. Details of series 550 can be found on page 4.

Width: 310 mm
Depth: 180 mm
Height: 550 mm

Type Number of drawers Dimensions W x D x H Tablet bracket
550
551 60 pcs 55 x 175 x 37 Document holder A4
552
554 48 pcs 69 x 175 x 37
556
557 24 pcs 138 x 175 x 37
550C
24 pcs 92 x 175 x 59

8 pcs 277 x 175 x 59

12 pcs 138 x 175 x 81

24 pcs 69 x 175 x 37
6 pcs 92 x 175 x 59
2 pcs 277 x 175 x 59

Treston Storage systems 7
