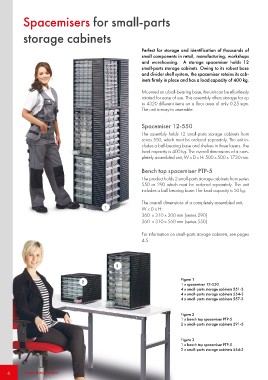

Spacemisers for small-parts
storage cabinets

Perfect for storage and identification of thousands of
small components in retail, manufacturing, workshops
and warehousing. A storage spacemiser holds 12
small-parts storage cabinets. Owing to its robust base
and divider shelf system, the spacemiser retains its cab-
inets firmly in place and has a load capacity of 400 kg.

Mounted on a ball-bearing base, the unit can be effortlessly
rotated for ease of use. This assembly offers storage for up
to 4320 different items on a floor area of only 0.25 sqm.
The unit is easy to assemble.

Spacemiser 12-550

The assembly holds 12 small-parts storage cabinets from
series 550, which must be ordered separately. The unit in-
cludes a ball-bearing base and shelves in three layers. The
load capacity is 400 kg. The overall dimensions of a com-
pletely assembled unit, W x D x H: 500 x 500 x 1730 mm.

Bench top spacemiser PTP-5

The product holds 2 small-parts storage cabinets from series
550 or 290 which must be ordered separately. The unit
includes a ball bearing base. The load capacity is 50 kg.

The overall dimensions of a completely assembled unit,
1 W x D x H:

360 x 310 x 300 mm (series 290)
360 x 310 x 560 mm (series 550)

For information on small-parts storage cabinets, see pages
4-5. 4-5.

3 Figure 1
2 1 x spacemiser 12-550
4 x small-parts storage cabinets 551-3
6 6 Treston Storage systems 4 x small-parts storage cabinets 554-3
4 x small-parts storage cabinets 557-3
Figure 2
1 x bench top spacemiser PTP-5
2 x small-parts storage cabinets 291-3
Figure 3
1 x bench top spacemiser PTP-5
2 x small-parts storage cabinets 554-3
