Page 24 - Treston
P. 24

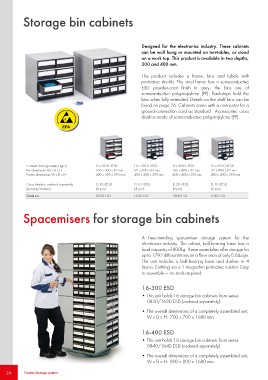

Storage bin cabinets
Designed for the electronics industry. These cabinets
can be wall hung or mounted on turntables, or stood
on a work top. This product is available in two depths,
300 and 400 mm.
This product includes a frame, bins and labels with
protective shields. The steel frame has a semiconductive
ESD powder-coat finish in grey, the bins are of
semiconductive polypropylene (PP). Backstops hold the
bins when fully extended. Details on the shelf bins can be
found on page 26. Cabinets come with a connector for a
ground-connection cord as standard. Accessories: cross
dividers made of semiconductive polypropylene (PP).
Contains bins (quantity x type) 8 x 3020-4ESD 16 x 3010-4ESD 8 x 4020-4ESD 16 x 4010-4ESD
Bin dimensions W x D x H 186 x 300 x 82 mm 92 x 300 x 82 mm 186 x 400 x 82 mm 92 x 400 x 82 mm
Frame dimensions W x D x H 400 x 300 x 395 mm 400 x 300 x 395 mm 400 x 400 x 395 mm 400 x 400 x 395 mm
Cross dividers, ordered separately D-20-4ESD D-10-4ESD D-20-4ESD D-10-4ESD
(quantity/drawer) (4 pcs) (4 pcs) (6 pcs) (6 pcs)
Code no. 0830 ESD 1630 ESD 0840 ESD 1640 ESD
Spacemisers for storage bin cabinets
A free-standing spacemiser storage system for the
electronics industry. The robust, ball-bearing base has a
load capacity of 800kg. These assemblies offer storage for
up to 1792 different items on a floor area of only 0.64sqm.
The unit includes a ball-bearing base and shelves in 4
layers. Earthing via a 1 megaohm protective resistor. Easy
to assemble — no tools required.
16-300 ESD
• This unit holds 16 storage bin cabinets from series
0830/1630 ESD (ordered separately).
• The overall dimensions of a completely assembled unit,
W x D x H: 700 x 700 x 1680 mm.
16-400 ESD
• This unit holds 16 storage bin cabinets from series
0840/1640 ESD (ordered separately).
• The overall dimensions of a completely assembled unit,
W x D x H: 800 x 800 x 1680 mm.
2424 Treston Storage systems
