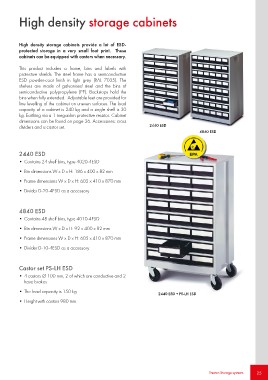

Page 25 - Treston

High density storage cabinets

High density storage cabinets provide a lot of ESD- 2440 ESD
protected storage in a very small foot print. These
cabinets can be equipped with castors when necessary. 4840 ESD

This product includes a frame, bins and labels with
protective shields. The steel frame has a semiconductive
ESD powder-coat finish in light grey (RAL 7035). The
shelves are made of galvanised steel and the bins of
semiconductive polypropylene (PP). Backstops hold the
bins when fully extended. Adjustable feet are provided for
fine levelling of the cabinet on uneven surfaces. The load
capacity of a cabinet is 240 kg and a single shelf is 30
kg. Earthing via a 1 megaohm protective resistor. Cabinet
dimensions can be found on page 26. Accessories: cross
dividers and a castor set.

2440 ESD 2440 ESD + PS-LH ESD

• Contains 24 shelf bins, type 4020-4ESD
• Bin dimensions W x D x H: 186 x 400 x 82 mm
• Frame dimensions W x D x H: 605 x 410 x 870 mm
• Divider D-20-4ESD as a accessory

4840 ESD

• Contains 48 shelf bins, type 4010-4ESD
• Bin dimensions W x D x H: 92 x 400 x 82 mm
• Frame dimensions W x D x H: 605 x 410 x 870 mm
• Divider D-10-4ESD as a accessory

Castor set PS-LH ESD

• 4 castors Ø 100 mm, 2 of which are conductive and 2
have brakes

• The load capacity is 150 kg
• Height with castors 980 mm.

Treston Storage systems 25
