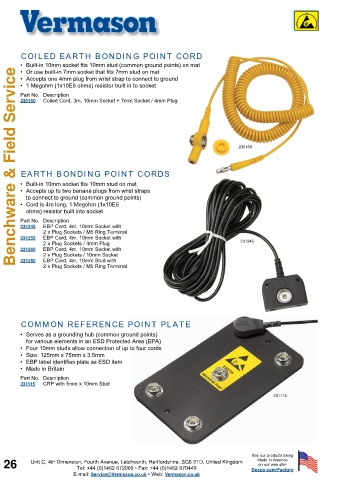

Page 26 - VERMASON ESD katalógus

COILED EARTH BONDING POINT CORD
Benchware & Field Service • Built-in 10mm socket fits 10mm stud (common ground points) on mat
• Or use built-in 7mm socket that fits 7mm stud on mat
• Accepts one 4mm plug from wrist strap to connect to ground
• 1 Megohm (1x10E6 ohms) resistor built in to socket
Part No. Description
230150 Coiled Cord, 3m, 10mm Socket + 7mm Socket / 4mm Plug

230150

EARTH BONDING POINT CORDS

• Built-in 10mm socket fits 10mm stud on mat
• Accepts up to two banana plugs from wrist straps
to connect to ground (common ground points)
• Cord is 4m long, 1 Megohm (1x10E6
ohms) resistor built into socket
Part No. Description
231245 EBP Cord, 4m, 10mm Socket with
2 x Plug Sockets / M5 Ring Terminal
231255 EBP Cord, 4m, 10mm Socket with
2 x Plug Sockets / 4mm Plug 231245
231260 EBP Cord, 4m, 10mm Socket with
2 x Plug Sockets / 10mm Socket
231250 EBP Cord, 4m, 10mm Stud with
2 x Plug Sockets / M5 Ring Terminal

COMMON REFERENCE POINT PLATE
• Serves as a grounding hub (common ground points)
for various elements in an ESD Protected Area (EPA)
• Four 10mm studs allow connection of up to four cords
• Size: 125mm x 75mm x 3.5mm
• EBP label identifies plate as ESD item
• Made in Britain
Part No. Description
231115 CRP with 5mm x 10mm Stud

231115
