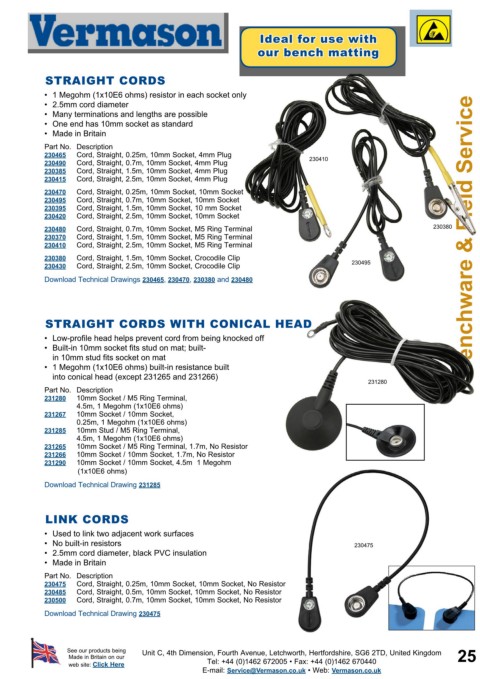

Page 25 - VERMASON ESD katalógus

Ideal for use with
our bench matting

STRAIGHT CORDS

• 1 Megohm (1x10E6 ohms) resistor in each socket only
• 2.5mm cord diameter
• Many terminations and lengths are possible
• One end has 10mm socket as standard
• Made in Britain
Part No. Description
230465 Cord, Straight, 0.25m, 10mm Socket, 4mm Plug
230490 Cord, Straight, 0.7m, 10mm Socket, 4mm Plug 230410
230385 Cord, Straight, 1.5m, 10mm Socket, 4mm Plug
230415 Cord, Straight, 2.5m, 10mm Socket, 4mm Plug
230470 Cord, Straight, 0.25m, 10mm Socket, 10mm Socket
230495 Cord, Straight, 0.7m, 10mm Socket, 10mm Socket
230395 Cord, Straight, 1.5m, 10mm Socket, 10 mm Socket
230420 Cord, Straight, 2.5m, 10mm Socket, 10mm Socket
230480 Cord, Straight, 0.7m, 10mm Socket, M5 Ring Terminal 230380
230370 Cord, Straight, 1.5m, 10mm Socket, M5 Ring Terminal Benchware & Field Service
230410 Cord, Straight, 2.5m, 10mm Socket, M5 Ring Terminal
230380 Cord, Straight, 1.5m, 10mm Socket, Crocodile Clip
230430 Cord, Straight, 2.5m, 10mm Socket, Crocodile Clip 230495

Download Technical Drawings 230465, 230470, 230380 and 230480

STRAIGHT CORDS WITH CONICAL HEAD

• Low-profile head helps prevent cord from being knocked off
• Built-in 10mm socket fits stud on mat; built-
in 10mm stud fits socket on mat
• 1 Megohm (1x10E6 ohms) built-in resistance built
into conical head (except 231265 and 231266)
231280
Part No. Description
231280 10mm Socket / M5 Ring Terminal,
4.5m, 1 Megohm (1x10E6 ohms)
231267 10mm Socket / 10mm Socket,
0.25m, 1 Megohm (1x10E6 ohms)
231285 10mm Stud / M5 Ring Terminal,
4.5m, 1 Megohm (1x10E6 ohms)
231265 10mm Socket / M5 Ring Terminal, 1.7m, No Resistor
231266 10mm Socket / 10mm Socket, 1.7m, No Resistor
231290 10mm Socket / 10mm Socket, 4.5m 1 Megohm
(1x10E6 ohms)
Download Technical Drawing 231285

LINK CORDS

• Used to link two adjacent work surfaces
• No built-in resistors 230475
• 2.5mm cord diameter, black PVC insulation
• Made in Britain
Part No. Description
230475 Cord, Straight, 0.25m, 10mm Socket, 10mm Socket, No Resistor
230485 Cord, Straight, 0.5m, 10mm Socket, 10mm Socket, No Resistor
230500 Cord, Straight, 0.7m, 10mm Socket, 10mm Socket, No Resistor
Download Technical Drawing 230475

See our products being Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom 25
Made in Britain on our
web site: Click Here Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk
