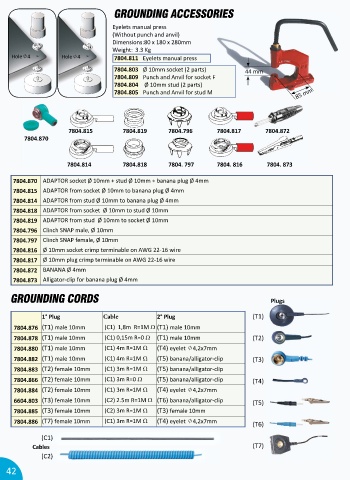

Page 42 - ITECO Catalogue 2024

GROUNDING ACCESSORIES

Eyelets manual press
(Without punch and anvil)
Dimensions:80 x 180 x 280mm
Weight: 3.3 Kg
Hole ∅4 Hole ∅4 7804.811 Eyelets manual press
7804.803 Ø 10mm socket (2 parts) 44 mm
7804.809 Punch and Anvil for socket F
7804.804 Ø 10mm stud (2 parts)
85 mm
7804.805 Punch and Anvil for stud M

7804.815 7804.819 7804.796 7804.817 7804.872
7804.870

7804.814 7804.818 7804. 797 7804. 816 7804. 873

7804.870 ADAPTOR socket Ø 10mm + stud Ø 10mm + banana plug Ø 4mm
7804.815 ADAPTOR from socket Ø 10mm to banana plug Ø 4mm
7804.814 ADAPTOR from stud Ø 10mm to banana plug Ø 4mm
7804.818 ADAPTOR from socket Ø 10mm to stud Ø 10mm
7804.819 ADAPTOR from stud Ø 10mm to socket Ø 10mm
7804.796 Clinch SNAP male, Ø 10mm
7804.797 Clinch SNAP female, Ø 10mm
7804.816 Ø 10mm socket crimp terminable on AWG 22-16 wire
7804.817 Ø 10mm plug crimp terminable on AWG 22-16 wire
7804.872 BANANA Ø 4mm
7804.873 Alligator-clip for banana plug Ø 4mm

GROUNDING CORDS Plugs

1° Plug Cable 2° Plug (T1)
7804.876 (T1) male 10mm (C1) 1,8m R=1M Ω (T1) male 10mm
7804.878 (T1) male 10mm (C1) 0,15m R=0 Ω (T1) male 10mm (T2)
7804.880 (T1) male 10mm (C1) 4m R=1M Ω (T4) eyelet ∅4,2x7mm

7804.882 (T1) male 10mm (C1) 4m R=1M Ω (T5) banana/alligator-clip (T3)
7804.883 (T2) female 10mm (C1) 3m R=1M Ω (T5) banana/alligator-clip
7804.866 (T2) female 10mm (C1) 3m R=0 Ω (T5) banana/alligator-clip (T4)
7804.884 (T2) female 10mm (C1) 3m R=1M Ω (T4) eyelet ∅4,2x7mm
6604.803 (T3) female 10mm (C2) 2.5m R=1M Ω (T6) banana/alligator-clip (T5)
7804.885 (T3) female 10mm (C2) 3m R=1M Ω (T3) female 10mm
7804.886 (T7) female 10mm (C1) 3m R=1M Ω (T4) eyelet ∅4,2x7mm
(T6)
(C1)
Cables (T7)
(C2)
42
