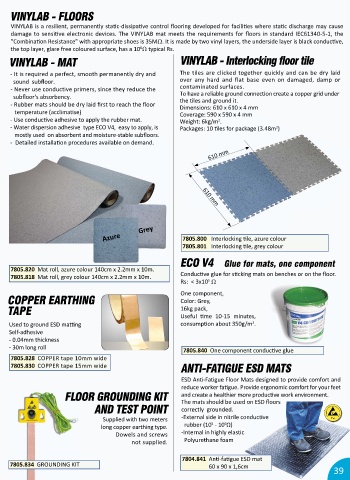

Page 39 - ITECO Catalogue 2024

VINYLAB - FLOORS

VINYLAB is a resilient, permanently sta c-dissipa ve control flooring developed for facili es where sta c discharge may cause

damage to sensi ve electronic devices. The VINYLAB mat meets the requirements for floors in standard IEC61340-5-1, the

"Combina on Resistance" with appropriate shoes is 35MΩ. It is made by two vinyl layers, the underside layer is black conduc ve,

6
the top layer, glare free coloured surface, has a 10 Ω typical Rs.
VINYLAB - MAT VINYLAB - Interlocking floor tile
- It is required a perfect, smooth permanently dry and The tiles are clicked together quickly and can be dry laid
sound subfloor. over any hard and flat base even on damaged, damp or

contaminated surfaces.
- Never use conductive primers, since they reduce the
To have a reliable ground connec on create a copper grid under

subfloor's absorbency.

the les and ground it.
- Rubber mats should be dry laid first to reach the floor

Dimensions: 610 x 610 x 4 mm

temperature (acclima se)
Coverage: 590 x 590 x 4 mm

- Use conduc ve adhesive to apply the rubber mat. Weight: 6kg/m .
2
- Water dispersion adhesive type ECO V4, easy to apply, is Packages: 10 les for package (3.48m )
2

mostly used on absorbent and moisture-stable subfloors.

- Detailed installa on procedures available on demand.

610 mm
610 mm
Azure Grey 7805.800 Interlocking le, azure colour
7805.801 Interlocking le, grey colour
ECO V4 Glue for mats, one component
7805.820 Mat roll, azure colour 140cm x 2.2mm x 10m.

7805.818 Mat roll, grey colour 140cm x 2.2mm x 10m. Conduc ve glue for s cking mats on benches or on the floor.
Rs: < 3x10 Ω
5
One component,
COPPER EARTHING Color: Grey,
TAPE 16kg pack,

Useful me 10-15 minutes,
2

Used to ground ESD ma ng consump on about 350g/m .
Self-adhesive
- 0.04mm thickness
- 30m long roll
7805.840 One component conduc ve glue
7805.828 COPPER tape 10mm wide
ANTI-FATIGUE ESD MATS
7805.830 COPPER tape 15mm wide
ESD An -Fa gue Floor Mats designed to provide comfort and

reduce worker fa gue. Provide ergonomic comfort for your feet

FLOOR GROUNDING KIT and create a healthier more produc ve work environment.

AND TEST POINT The mats should be used on ESD floors
correctly grounded.

Supplied with two meters -External side in nitrile conduc ve
6
5
long copper earthing type. rubber (10 - 10 Ω)
Dowels and screws -Internal in highly elas c
not supplied. Polyurethane foam
7804.841 An -fa gue ESD mat
7805.834 GROUNDING KIT 60 x 90 x 1,6cm
