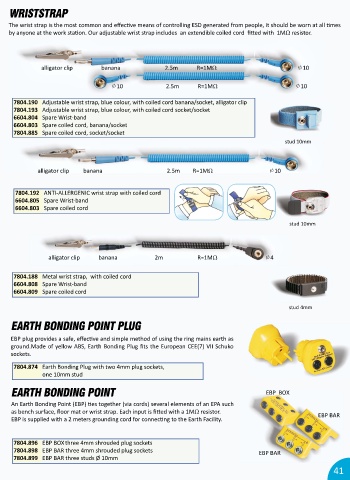

Page 41 - ITECO Catalogue 2024
P. 41

WRISTSTRAP



        The wrist strap is the most common and effec ve means of controlling ESD generated from people, it should be worn at all  mes


        by anyone at the work sta on. Our adjustable wrist strap includes  an extendible coiled cord  fi  ed with  1MΩ resistor.

                  alligator clip                    banana                               2.5m              R=1MΩ                                                         ∅10


                                                                 ∅10                              2.5m             R=1MΩ                                                       ∅10

          7804.190 Adjustable wrist strap, blue colour, with coiled cord banana/socket, alligator clip
          7804.193 Adjustable wrist strap, blue colour, with coiled cord socket/socket
          6604.804 Spare Wrist-band
          6604.803 Spare coiled cord, banana/socket
          7804.885 Spare coiled cord, socket/socket
                                                                                               stud 10mm



                 alligator clip          banana                                             2.5m         R=1MΩ                                        ∅10



          7804.192 ANTI-ALLERGENIC wrist strap with coiled cord
          6604.805 Spare Wrist-band
          6604.803 Spare coiled cord

                                                                                                 stud 10mm





                     alligator clip             banana                          2m                        R=1MΩ                                  ∅4

          7804.188 Metal wrist strap,  with coiled cord
          6604.808 Spare Wrist-band
          6604.809 Spare coiled cord

                                                                                                 stud 4mm

           EARTH BONDING POINT PLUG




         EBP plug provides a safe, effec ve and simple method of using the ring mains earth as

         ground.Made of yellow ABS, Earth Bonding Plug fits the European CEE(7) VII Schuko
         sockets.
          7804.874 Earth Bonding Plug with two 4mm plug sockets,
                   one 10mm stud
           EARTH BONDING POINT                                                           EBP  BOX

         An  Earth Bonding Point (EBP)  es together (via cords) several elements of an EPA such

         as bench surface, floor mat or wrist strap. Each input is fi  ed with a 1MΩ resistor.              EBP BAR


         EBP is supplied with a 2 meters grounding cord for connec ng to the Earth Facility.

          7804.896 EBP BOX three 4mm shrouded plug sockets
          7804.898 EBP BAR three 4mm shrouded plug sockets                             EBP BAR
          7804.899 EBP BAR three studs Ø 10mm
