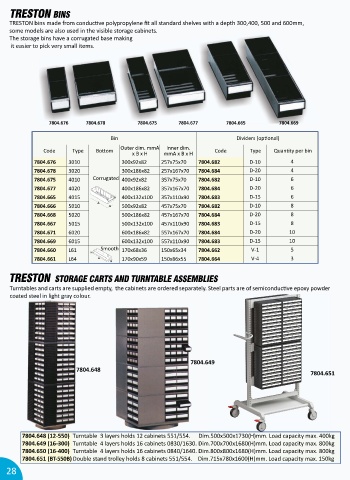

Page 28 - ITECO Catalogue 2024

TRESTON BINS
TRESTON bins made from conduc ve polypropylene fit all standard shelves with a depth 300,400, 500 and 600mm,

some models are also used in the visible storage cabinets.
The storage bins have a corrugated base making
it easier to pick very small items.

780
4.6
7804.676 780 4.6 78 7804.675 780 4.6 77 7804.665 7804.669
780
4.6
76
7804.678
75
7804
7804.6
69
669
7804.665
7804.677
7804.6
7804.665
77

Bin Dividers (op onal)
Outer dim. mmA Inner dim.

Code Type Bo om Code Type Quan ty per bin
x B x H mmA x B x H
7804.676 3010 300x92x82 257x75x70 7804.682 D-10 4
7804.678 3020 300x186x82 257x167x70 7804.684 D-20 4
7804.675 4010 Corrugated 400x92x82 357x75x70 7804.682 D-10 6
7804.677 4020 400x186x82 357x167x70 7804.684 D-20 6
7804.665 4015 400x132x100 357x110x90 7804.683 D-15 6
7804.666 5010 500x92x82 457x75x70 7804.682 D-10 8
7804.668 5020 500x186x82 457x167x70 7804.684 D-20 8
7804.667 5015 500x132x100 457x110x90 7804.683 D-15 8
7804.671 6020 600x186x82 557x167x70 7804.684 D-20 10
7804.669 6015 600x132x100 557x110x90 7804.683 D-15 10
Smooth
7804.660 L61 170x68x36 150x65x34 7804.662 V-1 5
7804.661 L64 170x90x59 150x86x55 7804.664 V-4 3
TRESTON STORAGE CARTS AND TURNTABLE ASSEMBLIES
Turntables and carts are supplied empty, the cabinets are ordered separately. Steel parts are of semiconduc ve epoxy powder

coated steel in light gray colour.

7804.649
7804.648
7804.651

7804.648 (12-550) Turntable 3 layers holds 12 cabinets 551/554. Dim.500x500x1730(H)mm. Load capacity max. 400kg
7804.649 (16-300) Turntable 4 layers holds 16 cabinets 0830/1630. Dim.700x700x1680(H)mm. Load capacity max. 800kg
7804.650 (16-400) Turntable 4 layers holds 16 cabinets 0840/1640. Dim.800x800x1680(H)mm. Load capacity max. 800kg
7804.651 (BT-550B)Double stand trolley holds 8 cabinets 551/554. Dim.715x780x1600(H)mm. Load capacity max. 150kg
28
